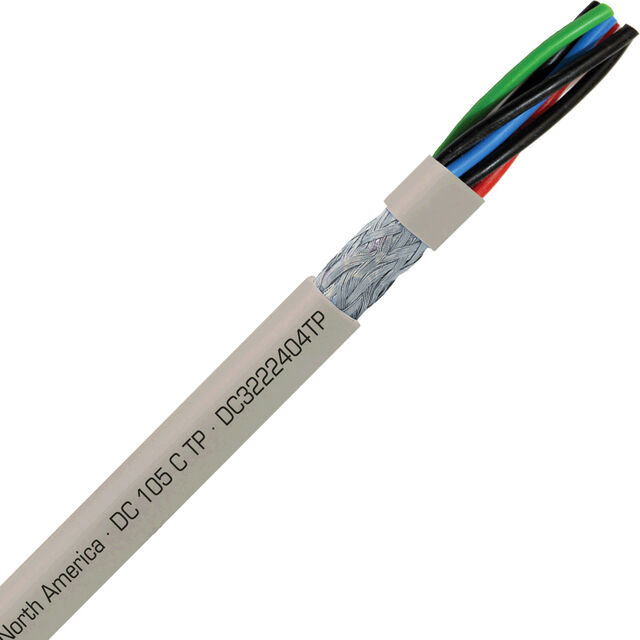

DC3222404TP

Active

SAB North America

MULTI-PAIR 8COND 24AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULTI-PAIR 8COND 24AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DC3222404TP	DC3222404 Series

Cable Type	Multi-Pair	Multi-Conductor, Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Oil Resistant	Drain Wire, Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.292 in	0.209 - 0.292 in
Jacket (Insulation) Diameter [diameter]	7.42 mm	5.31 - 7.42 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray	Gray
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	8	4 - 8
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Foil, Braid	Foil, Braid
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

CABLE 4COND 24AWG GRY SHLD 1=1FT

Part	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Shield Type	Number of Conductors	Features	Length	Jacket Color	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Wire Gauge
SAB North America DC3222404S	Copper, Tinned	0.209 in	5.31 mm	Poly-Vinyl Chloride (PVC)	Multi-Conductor	32 AWG	7	300 V	Braid, Foil	4	Drain Wire	Enter Number of Feet in Order Quantity	Gray	Poly-Vinyl Chloride (PVC)	-25 °C	105 ░C	Copper, Tinned	24 AWG
SAB North America DC3222404TP	Copper, Tinned	0.292 in	7.42 mm	Poly-Vinyl Chloride (PVC)	Multi-Pair	32 AWG	7	300 V	Braid, Foil	8	Oil Resistant	Enter Number of Feet in Order Quantity	Gray	Poly-Vinyl Chloride (PVC)	-25 °C	105 ░C	Copper, Tinned	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
