MVU10-250DMK
Active3M

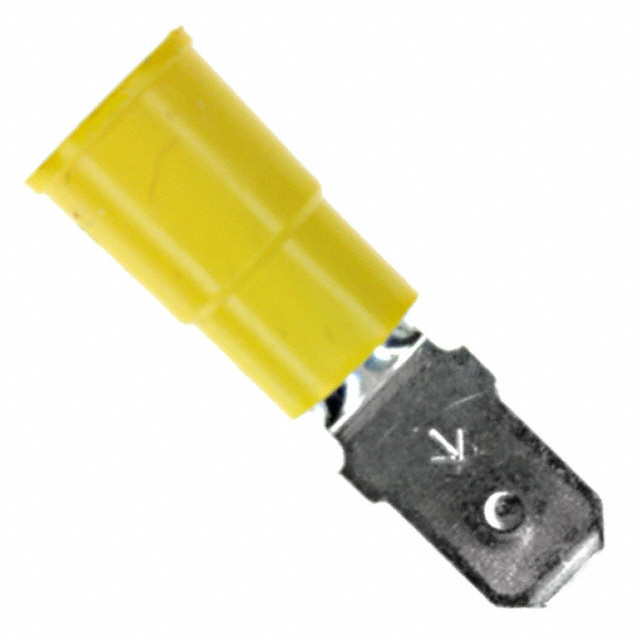

CONN QC TAB 10-12AWG 0.250 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MVU10-250DMK
Active3M
CONN QC TAB 10-12AWG 0.250 CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MVU10-250DMK | MVU10 Series |
|---|---|---|
| Color | Yellow | Yellow |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | ETP, Copper |
| Features | Butted Seam | Butted Seam |
| Gender | Male | Male |
| Insulation | Non-Mating End Insulated | Insulated, Fully Insulated, Non-Mating End Insulated |
| Insulation Diameter | 0.25 " | 0.25 " |
| Insulation Diameter | 6.35 mm | 6.35 mm |
| Length - Overall | 26.67 mm | 26.16 - 26.67 mm |
| Length - Overall | - | 24.89 - 32 mm |
| Length - Overall [x] | 1.05 in | 0.98 - 1.26 in |
| Length - Ring Center to Termination | - | 0.28 - 0.29 in |
| Length - Ring Center to Termination | - | 7.11 - 7.37 mm |
| Length - Ring Center to Termination | - | 0.44 in |
| Length - Ring Center to Termination | - | 11.18 mm |
| Length - Termination | - | 13.97 mm |
| Length - Termination | - | 0.55 in |
| Material - Insulation | - | Vinyl |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Wire Entries | - | Varies by Wire Size |
| Number of Wire Entries | - | 2 |
| Stud/Tab Size | - | 8 Stud, 3/8 Stud |
| Stud/Tab Size | - | 0.25 - 10 Stud |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 6.35 mm | 6.35 mm |
| Tab Width | 0.25 in | 0.25 in |
| Terminal Type | Standard | Standard, Circular, Snap, Spring, Inline, Individual Openings (Parallel), Flanged, Butt Splice, Inline, Individual Openings |
| Termination | Crimp | Crimp |
| Thickness | - | 0.04 in |
| Thickness | - | 1.02 mm |
| Width - Outer Edges | - | 9.65 mm |
| Width - Outer Edges | - | 0.38 " |
| Width - Outer Edges | - | 0.28 - 0.54 in |
| Width - Outer Edges | - | 13.46 mm |
| Width - Outer Edges | - | 7.11 - 13.72 mm |
| Wire Gauge [Max] | 12 AWG | 12 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
MVU10 Series
CONN SPADE TERM 10-12AWG #8 50PC
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Width - Outer Edges [x] | Width - Outer Edges [x] | Termination | Features | Insulation Diameter | Insulation Diameter | Length - Ring Center to Termination | Length - Ring Center to Termination | Insulation | Length - Termination | Length - Termination | Color | Material - Insulation | Length - Overall [x] | Length - Overall | Contact Finish | Stud/Tab Size | Contact Material | Terminal Type | Mounting Type | Thickness | Thickness | Length - Overall [x] | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges | Width - Outer Edges [y] | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Number of Wire Entries | Tab Thickness | Tab Thickness | Gender | Tab Width | Tab Width | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12 AWG | 10 AWG | 9.65 mm | 0.38 " | Crimp | Butted Seam | 0.25 " | 6.35 mm | 0.29 in | 7.37 mm | Insulated | 13.97 mm | 0.55 in | Yellow | Vinyl | 1.03 in | 26.16 mm | Tin | 8 Stud | Copper, ETP | Standard | Free Hanging (In-Line) | |||||||||||||||||
12 AWG | 10 AWG | Crimp | 0.25 " | 6.35 mm | Insulated | Yellow | Vinyl | 1.26 in | Tin | Copper, ETP | Circular | Free Hanging (In-Line) | 0.04 in | 1.02 mm | 32 mm | 0.3125 Stud | 0.53 in | 13.46 mm | ||||||||||||||||||||
12 AWG | 10 AWG | 9.65 mm | 0.38 " | Crimp | 0.25 " | 6.35 mm | Insulated | Yellow | Vinyl | 1.03 in | 26.16 mm | Tin | 8 Stud | Copper, ETP | Circular | Free Hanging (In-Line) | 0.04 in | 1.02 mm | ||||||||||||||||||||
12 AWG | 10 AWG | Crimp | 0.25 " | 6.35 mm | Insulated | Yellow | Vinyl | 1.26 in | Tin | 3/8 Stud | Copper, ETP | Circular | Free Hanging (In-Line) | 0.04 in | 1.02 mm | 32 mm | 0.54 in | 13.72 mm | ||||||||||||||||||||
12 AWG | 10 AWG | Crimp | Butted Seam | 0.25 " | 6.35 mm | Insulated | 13.97 mm | 0.55 in | Yellow | Vinyl | 1.24 in | Tin | Copper, ETP | Snap, Spring | Free Hanging (In-Line) | 31.5 mm | 0.25 Stud | 0.43 " | 10.92 mm | 0.44 in | 11.18 mm | |||||||||||||||||
3M MVU10PCK | 12 AWG | 10 AWG | Crimp | Fully Insulated | Yellow | Inline, Individual Openings (Parallel) | Varies by Wire Size | |||||||||||||||||||||||||||||||
12 AWG | 10 AWG | Crimp | Butted Seam | 0.25 " | 6.35 mm | 0.29 in | 7.37 mm | Insulated | 13.97 mm | 0.55 in | Yellow | Vinyl | 1.03 in | 26.16 mm | Tin | Copper, ETP | Standard | Free Hanging (In-Line) | 10 Stud | 0.32 in | 8.13 mm | |||||||||||||||||
12 AWG | 10 AWG | Crimp | 0.25 " | 6.35 mm | Insulated | Yellow | Vinyl | 0.98 in | Tin | Copper, ETP | Circular | Free Hanging (In-Line) | 0.04 in | 1.02 mm | 24.89 mm | 4 Stud | 0.28 in | 7.11 mm | ||||||||||||||||||||
12 AWG | 10 AWG | Crimp | 0.25 " | 6.35 mm | Insulated | Yellow | Vinyl | 1.26 in | Tin | 3/8 Stud | Copper, ETP | Circular | Free Hanging (In-Line) | 0.04 in | 1.02 mm | 32 mm | 0.54 in | 13.72 mm | ||||||||||||||||||||
12 AWG | 10 AWG | 9.65 mm | 0.38 " | Crimp | 0.25 " | 6.35 mm | Insulated | Yellow | Vinyl | 1.03 in | 26.16 mm | Tin | Copper, ETP | Circular | Free Hanging (In-Line) | 0.04 in | 1.02 mm | 10 Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.53 | |
Description
General part information
MVU10 Series
0.250" (6.35mm) Quick Connect Male 10-12 AWG Crimp Connector Non-Mating End Insulated
