1011256CH

Active

Integrated Power Designs

GRN-80-3002 CH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1011256CH

Active

Integrated Power Designs

GRN-80-3002 CH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 119.84
		25	$ 114.27
		100	$ 110.99

Description

General part information

GRN-80 Series

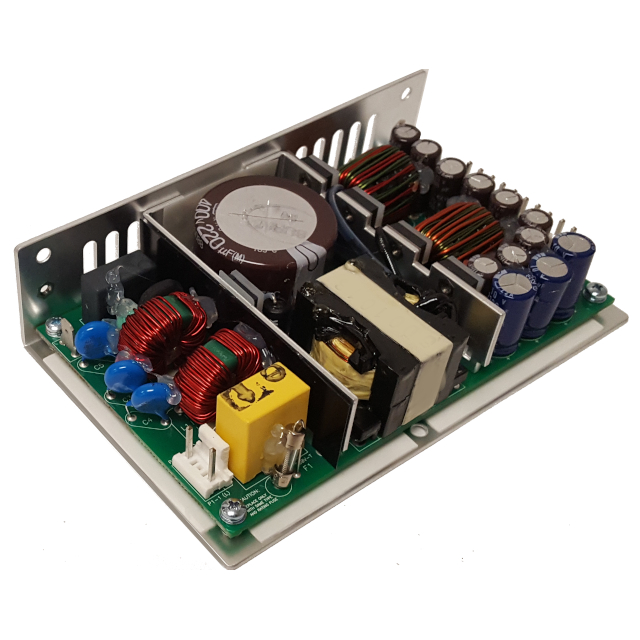

Chassis AC DC Converters 3 Output 5V 15V -15V 85 ~ 264 VAC Input
