US5F-TP

Active

Micro Commercial Co

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Co

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	US5F-TP

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SMC, DO-214AB
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AB (SMC)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.09

INTERFACE

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Supplier Device Package	Speed	Current - Reverse Leakage @ Vr	Mounting Type	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Current - Average Rectified (Io)
Micro Commercial Co US5F-TP	300 V	1.3 V	Standard	DO-214AB (SMC)	200 mA, 500 ns	10 µA	Surface Mount	50 ns	150 °C	-55 °C	DO-214AB, SMC	5 A

General part information

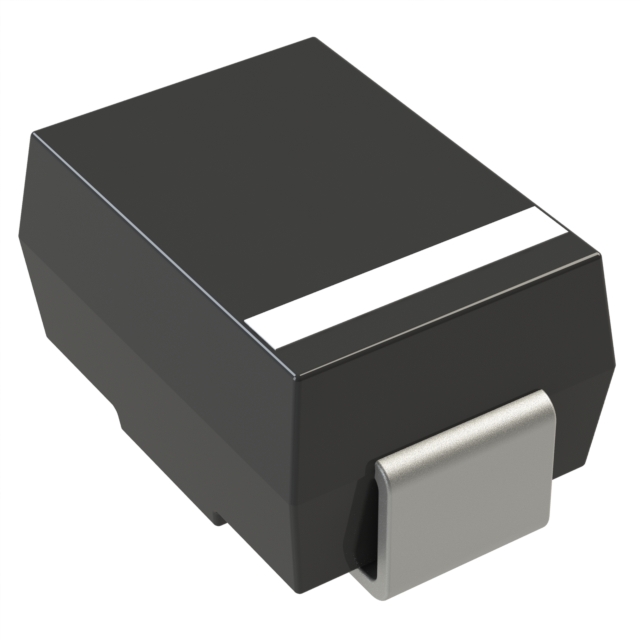

Diode 300 V 5A Surface Mount DO-214AB (SMC)
