Description
General part information

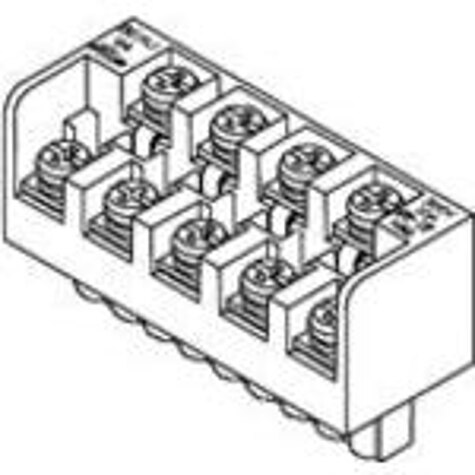

0399400419
PLUGGABLE TERMINAL BLOCKS PLUG RWE 5.08MM EMATE-E 1
Technical Specifications
Parameters and characteristics for this part
| Specification | 0399400419 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Current - UL | 15 A |
| Features | Mating Flange |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels (Input) | 2 |
| Number of Levels (Mate) | 1 |
| Number of Positions | 19 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Plug Wire Entry Angle | 90 ° |
| Positions Per Level | 9 |
| Positions Per Level (Input) | 10 |
| Positions Per Level (Mate) | 19 |
| Termination Style | Screw with Captive Plate |
| Type | Barrier Strip, Plug |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 22 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 3.3 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.3 mm² |
