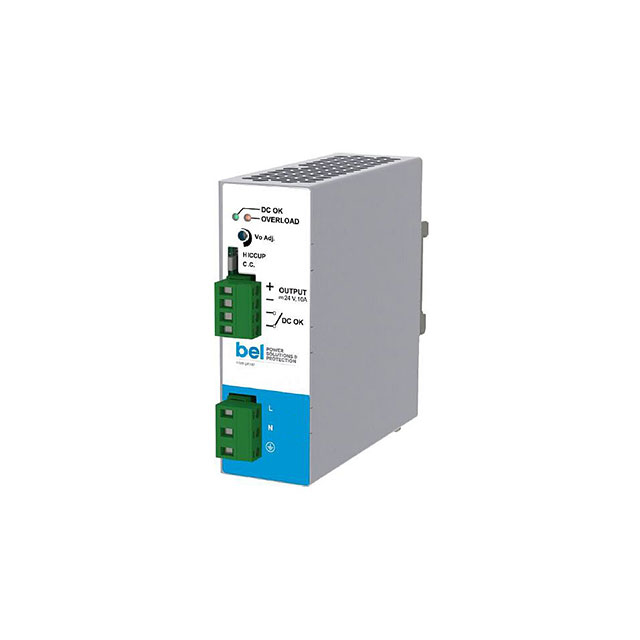

LDC240-24P

Active

Bel Power Solutions

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LDC240-24P	LDC240 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	90 VAC	90 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	10 A	10 A
Efficiency	93 %	93 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20	Universal Input, IP20, Adjustable Output, PFC, Load Sharing
Input Type	AC	AC
Number of Outputs	1	1
Power (Watts)	240 W	240 W
Size / Dimension [x]	4.33 in	4.33 in
Size / Dimension [x]	110 mm	110 mm
Size / Dimension [y]	40 mm	40 mm
Size / Dimension [y]	1.57 "	1.57 "
Size / Dimension [z]	115 mm	115 mm
Size / Dimension [z]	4.53 "	4.53 "
Voltage - Isolation	4.2 kV	4.2 kV
Voltage - Output 1	24 V	24 V

AC/DC DIN RAIL SUPPLY 24V 240W

Part	Number of Outputs	Efficiency	Voltage - Isolation	Input Type	Voltage - Output 1	Features	Applications	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)
Bel Power Solutions LDC240-24	1	93 %	4.2 kV	AC	24 V	Adjustable Output, IP20, PFC, Universal Input	ITE (Commercial)	10 A	90 VAC	264 VAC	115 mm	4.33 in	4.53 "	40 mm	1.57 "	110 mm	240 W
Bel Power Solutions LDC240-24P	1	93 %	4.2 kV	AC	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	ITE (Commercial)	10 A	90 VAC	264 VAC	115 mm	4.33 in	4.53 "	40 mm	1.57 "	110 mm	240 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 248.75
