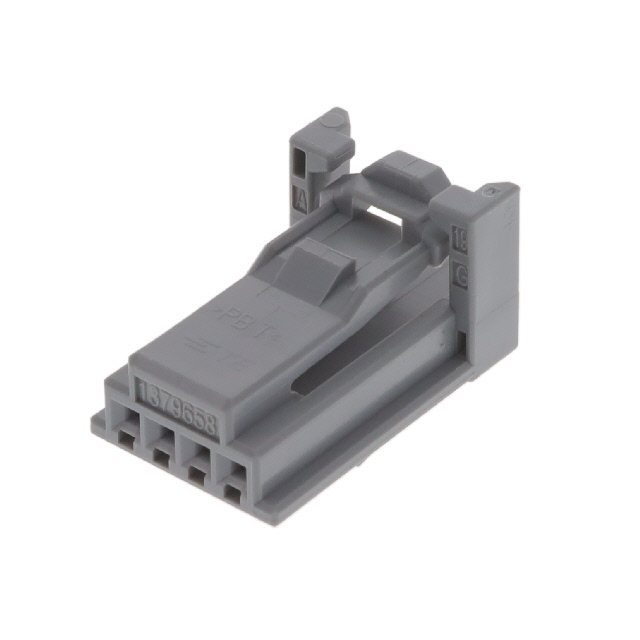

1379658-2

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 4POS 2.20MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 4POS 2.20MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1379658-2	1379658 Series

	-	-
Color	Gray	Gray
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Holder	Latch Holder
Features	Retainer	Retainer
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4
Number of Rows	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.087 in	0.087 in
Pitch [x]	2.2 mm	2.2 mm

CONN PLUG HSG 4POS 2.20MM

Part	Mounting Type	Insulation Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch [x]	Pitch [x]	Contact Type	Contact Termination	Color	Fastening Type	Number of Rows	Connector Type	Note
TE Connectivity AMP Connectors 1379658-2	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Retainer	100 °C	-40 °C	4	0.087 in	2.2 mm	Female Socket	Crimp	Gray	Latch Holder	1	Plug	Contacts Not Included
TE Connectivity AMP Connectors 1-1379658-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Gray 0.087" (2.20mm)
