A6KSV-164RS-R100
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6KSV-164RS-R100
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A6KSV-164RS-R100 | A6KS Series |
|---|---|---|
| Actuator Level | Raised | Raised, Flush, Recessed |
| Actuator Type | Rotary with Shaft | Rotary with Shaft, Rotary for Tool |
| Circuit | Hexadecimal | Hexadecimal, BCD |
| Contact Finish | Gold | Gold |
| Current Rating (Amps) | 25 mA | 25 mA |
| Electrical Life | 20000 Steps | 20000 Steps |
| Height Above Board | - | 0.118 - 0.236 in |
| Height Above Board | - | 3 - 6 mm |
| Height Above Board [z] | 7.45 mm | 7.45 mm |
| Height Above Board [z] | 0.293 in | 0.293 in |
| Length [x] | 7.2 mm | 7.2 mm |
| Length [x] | 0.283 " | 0.283 " |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle, Surface Mount |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch | - | Full |
| Pitch [x] | 0.05 in | 0.05 - 0.1 in |
| Pitch [x] | 1.27 mm | 1.27 - 2.54 mm |
| Termination Style | Gull Wing | Gull Wing |
| Voltage Rating | 24 VDC | 24 VDC |
| Washable | False | False |
A6KS Series
SWITCH ROTARY DIP HEX 0.025A 24V
| Part | Actuator Type | Washable | Termination Style | Current Rating (Amps) | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Height Above Board [z] | Height Above Board [z] | Pitch [x] | Pitch [x] | Length [x] | Length [x] | Voltage Rating | Contact Finish | Mounting Type | Circuit | Electrical Life | Actuator Level | Height Above Board | Height Above Board | Number of Positions | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A6KSV-164RS | Rotary with Shaft | Gull Wing | 25 mA | 16 | -30 ░C | 80 C | 7.45 mm | 0.293 in | 0.05 in | 1.27 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount, Right Angle | Hexadecimal | 20000 Steps | Raised | |||||
Omron Electronics Inc-EMC Div A6KS-104RF | Rotary for Tool | Gull Wing | 25 mA | -30 ░C | 80 C | 0.05 in | 1.27 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount | BCD | 20000 Steps | Flush, Recessed | 0.118 in | 3 mm | 10 | |||||
Omron Electronics Inc-EMC Div A6KSV-164RS-R100 | Rotary with Shaft | Gull Wing | 25 mA | 16 | -30 ░C | 80 C | 7.45 mm | 0.293 in | 0.05 in | 1.27 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount, Right Angle | Hexadecimal | 20000 Steps | Raised | |||||
Omron Electronics Inc-EMC Div A6KSV-164RF | Rotary for Tool | Gull Wing | 25 mA | 16 | -30 ░C | 80 C | 7.45 mm | 0.293 in | 0.05 in | 1.27 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount, Right Angle | Hexadecimal | 20000 Steps | Flush, Recessed | |||||
Omron Electronics Inc-EMC Div A6KS-102RS-R100 | Rotary with Shaft | Gull Wing | 25 mA | -30 ░C | 80 C | 0.1 in | 2.54 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount | BCD | 20000 Steps | Raised | 0.236 in | 6 mm | 10 | Full | ||||
Omron Electronics Inc-EMC Div A6KS-104RF-R100 | Rotary for Tool | Gull Wing | 25 mA | -30 ░C | 80 C | 0.05 in | 1.27 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount | BCD | 20000 Steps | Flush, Recessed | 0.118 in | 3 mm | 10 | |||||
Omron Electronics Inc-EMC Div A6KSV-104RS | Rotary with Shaft | Gull Wing | 25 mA | -30 ░C | 80 C | 7.45 mm | 0.293 in | 0.05 in | 1.27 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount, Right Angle | BCD | 20000 Steps | Raised | 10 | |||||
Omron Electronics Inc-EMC Div A6KS-104RS-R100 | Rotary with Shaft | Gull Wing | 25 mA | -30 ░C | 80 C | 0.05 in | 1.27 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount | BCD | 20000 Steps | Raised | 0.236 in | 6 mm | 10 | |||||
Omron Electronics Inc-EMC Div A6KSV-104RF | Rotary for Tool | Gull Wing | 25 mA | -30 ░C | 80 C | 7.45 mm | 0.293 in | 0.05 in | 1.27 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount, Right Angle | BCD | 20000 Steps | Flush, Recessed | 10 | |||||
Omron Electronics Inc-EMC Div A6KS-102RF | Rotary for Tool | Gull Wing | 25 mA | -30 ░C | 80 C | 0.1 in | 2.54 mm | 7.2 mm | 0.283 " | 24 VDC | Gold | Surface Mount | BCD | 20000 Steps | Flush, Recessed | 0.118 in | 3 mm | 10 | Full |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.82 | |
| 10 | $ 6.22 | |||
| 25 | $ 5.66 | |||
| Digi-Reel® | 1 | $ 6.82 | ||
| 10 | $ 6.22 | |||
| 25 | $ 5.66 | |||
| Tape & Reel (TR) | 100 | $ 4.89 | ||
| 300 | $ 4.44 | |||
| 500 | $ 4.12 | |||
| 1000 | $ 3.82 | |||
| 2500 | $ 3.67 | |||
Description
General part information
A6KS Series

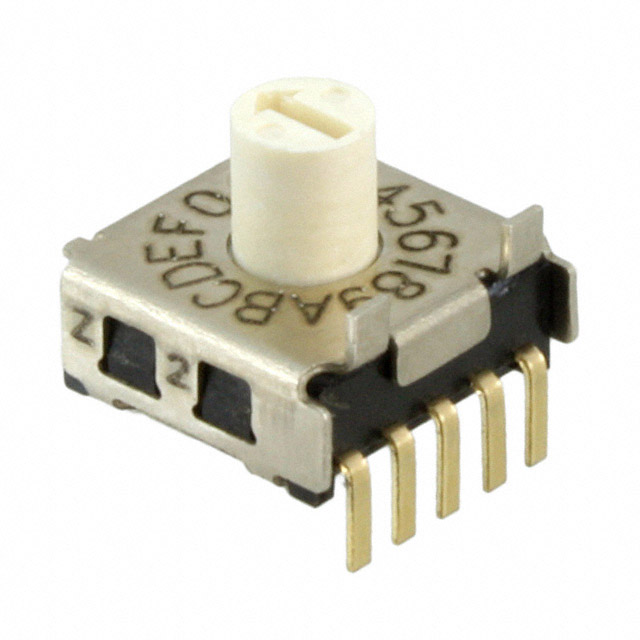

Dip Switch Hexadecimal 16 Position Surface Mount, Right Angle Rotary with Shaft Actuator 25mA 24VDC
