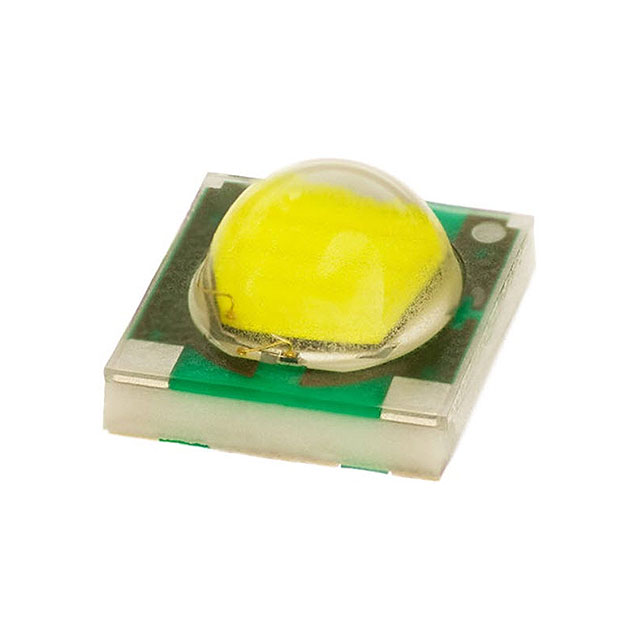

XPGWHT-L1-0000-00F50

Active

Cree LED

LED XLAMP COOL WHITE 6200K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPGWHT-L1-0000-00F50

Active

Cree LED

LED XLAMP COOL WHITE 6200K 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPGWHT-L1-0000-00F50	XPGWHT Series

CCT (K)	-	2700 - 6500 K
Color	Cool, White	White, Warm, Neutral, Cool
CRI (Color Rendering Index)	70	70 - 90
Current - Max [Max]	1.5 A	1.5 A
Current - Test	350 mA	350 mA
Flux @ 25°C, Current - Test	126 lm	71 - 176 lm
Flux @ 25°C, Current - Test	-	67 - 172 lm
Flux @ 25°C, Current - Test	-	74 - 180 lm
Flux @ 25°C, Current - Test	-	139 lm
Flux @ 25°C, Current - Test	-	148 lm
Lumens/Watt @ Current - Test	-	70 - 183 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	-	1414
Thermal Resistance of Package	-	1 °C/W
Thermal Resistance of Package [custom]	4 °C/W	4 °C/W
Viewing Angle	125 °	125 - 130 °
Voltage - Forward (Vf) (Typ)	2.9 V	2.75 - 2.9 V

XPGWHT Series

LED XLAMP WARM WHT 2850K 1414

...

Part	Current - Max [Max]	Viewing Angle	Thermal Resistance of Package [custom]	Mounting Type	Color	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test	Current - Test	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Lumens/Watt @ Current - Test	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package [custom]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
Cree LED XPGWHT-U1-0000-00DF8	1.5 A	130 °	1 °C/W	Surface Mount	Warm, White	90	111 lm	350 mA	3535 Metric	1414	2.75 V	1414	115 lm/W	2850 K	3.45 mm	0.136 in	0.136 in	3.45 mm
Cree LED XPGWHT-L1-0000-00KF6	1.5 A	130 °	1 °C/W	Surface Mount	Neutral, White	80	160 lm	350 mA	3535 Metric	1414	2.75 V	1414	166 lm/W	3750 K	3.45 mm	0.136 in	0.136 in	3.45 mm
Cree LED XPGWHT-H1-0000-00DF8	1.5 A	130 °	1 °C/W	Surface Mount	Warm, White	80	111 lm	350 mA	3535 Metric	1414	2.75 V	1414	115 lm/W	2850 K	3.45 mm	0.136 in	0.136 in	3.45 mm
Cree LED XPGWHT-L1-R250-00EF7	1.5 A	125 °		Surface Mount	Warm, White	80	118 lm	350 mA	3535 Metric	1414	2.9 V		116 lm/W	3250 K	3.45 mm	0.136 in	0.136 in	3.45 mm	4 °C/W
Cree LED XPGWHT-L1-0000-00F51	1.5 A	125 °		Surface Mount	Cool, White	70	126 lm	350 mA	3535 Metric	1414	2.9 V				3.45 mm	0.136 in	0.136 in	3.45 mm	4 °C/W
Cree LED XPGWHT-P1-0000-00CZ8	1.5 A	130 °	1 °C/W	Surface Mount	Warm, White	85	104 lm	350 mA	3535 Metric	1414	2.75 V	1414	108 lm/W	2700 K	3.45 mm	0.136 in	0.136 in	3.45 mm
Cree LED XPGWHT-U1-0000-007E8	1.5 A	125 °		Surface Mount	Warm, White	90	71 lm	350 mA	3535 Metric	1414	2.9 V		70 lm/W	2700 K	3.45 mm	0.136 in	0.136 in	3.45 mm	4 °C/W	67 lm	74 lm
Cree LED XPGWHT-L1-0000-00CE5	1.5 A	130 °	1 °C/W	Surface Mount	Neutral, White		104 lm	350 mA	3535 Metric	1414	2.75 V	1414	108 lm/W	4000 K	3.45 mm	0.136 in	0.136 in	3.45 mm
Cree LED XPGWHT-L1-0000-00L50	1.5 A	130 °	1 °C/W	Surface Mount	Cool, White	70	168 lm	350 mA	3535 Metric	1414	2.75 V	1414	175 lm/W		3.45 mm	0.136 in	0.136 in	3.45 mm
Cree LED XPGWHT-L1-R250-00F51	1.5 A	125 °		Surface Mount	Cool, White	70	126 lm	350 mA	3535 Metric	1414	2.9 V				3.45 mm	0.136 in	0.136 in	3.45 mm	4 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.52

Description

General part information

XPGWHT Series

LED Lighting XLamp® XP-G White, Cool 6200K 2.9V 350mA 125° 1414 (3535 Metric)
