46203MRX

Active

Switchcraft Inc.

SWITCH SLIDE SPDT 3A 125V

Search across all available documentation for this part.

Active

Switchcraft Inc.

SWITCH SLIDE SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE SPDT 3A 125V

Part	Actuator Material	Circuit	Voltage Rating - DC	Switch Travel	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Contact Timing	Actuator Length [x]	Current Rating (Amps)	Contact Material	Voltage Rating - AC	Switch Function
Switchcraft Inc. 46203MRX	Thermoplastic	SPDT	125 VDC	4.78 mm	Solder Lug	-20 C	70 °C	Standard	Non-Shorting	8.74 mm	3 A, 500 mA	Copper Alloy	125 V	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

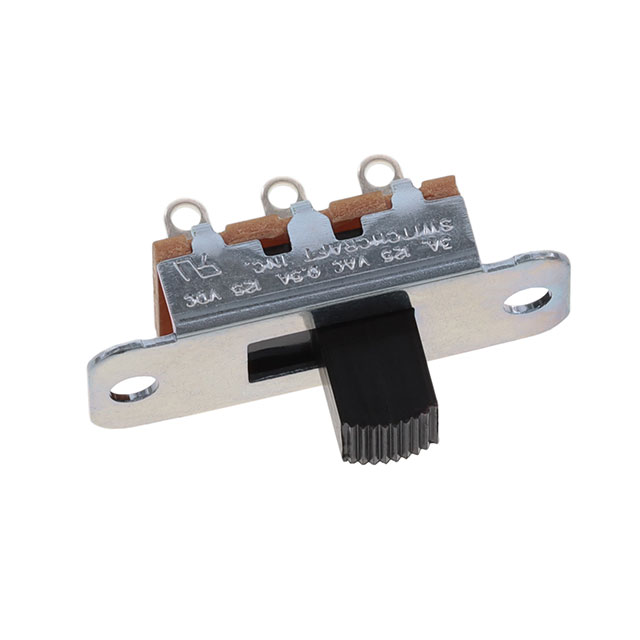

Slide Switch SPDT Panel Mount
