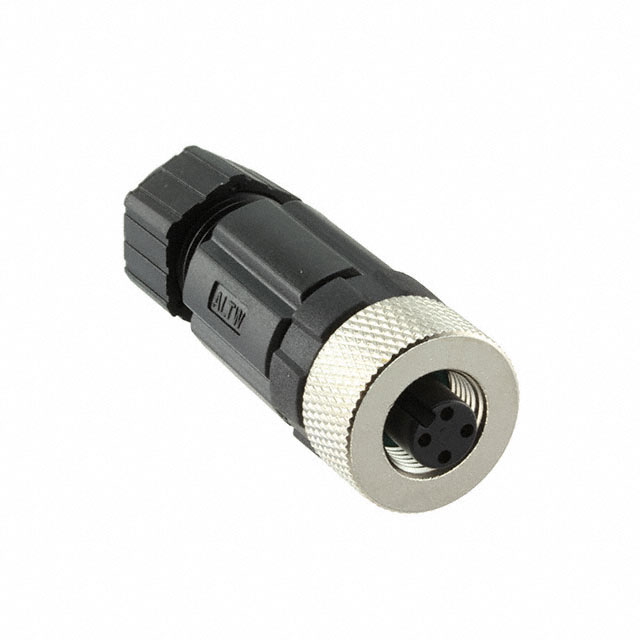

12-04BFFB-SL7001

Obsolete

Amphenol LTW

CONN RCPT FMALE 4POS GOLD SCREW

Search across all available documentation for this part.

Obsolete

Amphenol LTW

CONN RCPT FMALE 4POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	12-04BFFB-SL7001

Backshell Material, Plating	Nylon 6/6, Polyamide (PA66)
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw

CONN RCPT FMALE 4POS GOLD SCREW

Part	Number of Positions	Ingress Protection	Insert Material	Contact Finish - Mating	Primary Material	Shielding	Features	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Backshell Material, Plating	Orientation	Current Rating (Amps)	Color	Connector Type	Mounting Type	Shell Finish	Termination	Contact Material
Amphenol LTW 12-04BFFB-SL7001	4	IP67 - Dust Tight, Waterproof	Polyamide (PA), Nylon, Glass Filled	Gold	Metal	Unshielded	Backshell, Coupling Nut	M12-4	85 °C	-40 °C	Copper Alloy	Nylon 6/6, Polyamide (PA66)	A	4 A	Black, Silver	Receptacle, Female Sockets	Free Hanging (In-Line)	Nickel	Screw	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Receptacle, Female Sockets Screw
