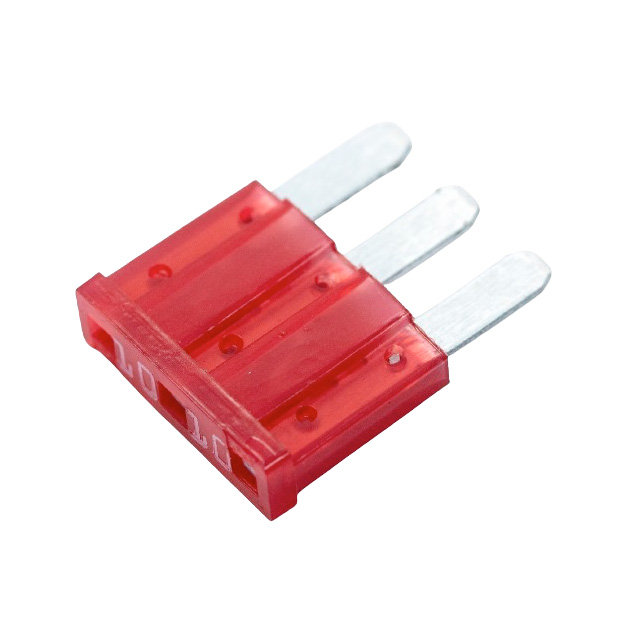

ANK-10A

Active

OptiFuse

FUSE AUTO 10A 32VDC BLADE MICRO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 10A 32VDC BLADE MICRO

Technical Specifications

Parameters and characteristics for this part

Specification	ANK-10A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Red
Current Rating (Amps)	10 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Micro
Response Time	Fast Blow
Size / Dimension [x]	0.563 in
Size / Dimension [x]	14.3 mm
Size / Dimension [y]	0.165 "
Size / Dimension [y]	4.2 mm
Size / Dimension [z]	10.6 mm
Size / Dimension [z]	0.417 "
Voltage Rating - DC	32 V

FUSE AUTO 10A 32VDC BLADE MICRO

Part	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Fuse Type	Breaking Capacity @ Rated Voltage	Color	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Approval Agency	Response Time
OptiFuse ANK-10A	Blade, Micro	10.6 mm	0.165 "	0.563 in	0.417 "	14.3 mm	4.2 mm	Automotive	1 kA	Red	10 A	32 V	Requires Holder	ISO, SAE	Fast Blow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.09

General part information

10 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro
