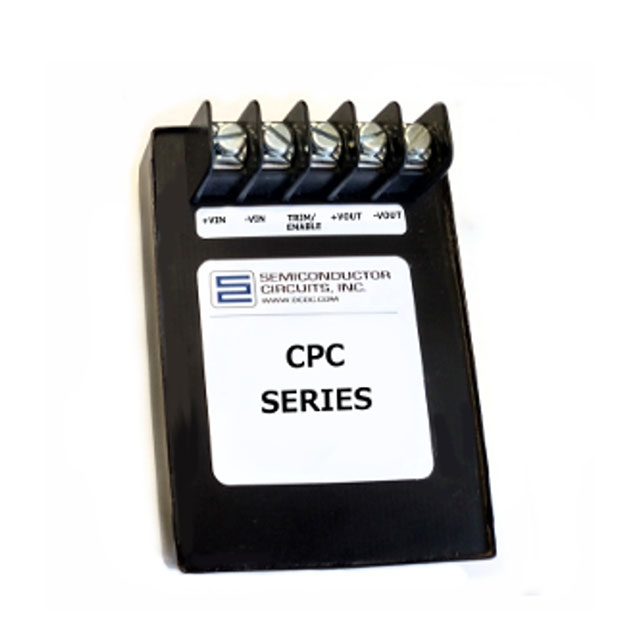

CPC4D36T

Active

Semiconductor Circuits, Inc.

DC/DC CONVERTER 24V 96W

Search across all available documentation for this part.

Active

Semiconductor Circuits, Inc.

DC/DC CONVERTER 24V 96W

Technical Specifications

Parameters and characteristics for this part

DC/DC CONVERTER 24V 96W

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Isolation	Applications	Voltage - Input (Min) [Min]	Voltage - Output 1	Number of Outputs
Semiconductor Circuits, Inc. CPC4D36T	4 A	72 V	Chassis Mount	88.9 mm	2.5 in	3.5 in	63.5 mm	38.1 mm	1.5 "	96 W	92 %	85 °C	-40 °C	Enclosed	2250 VDC	ITE (Commercial)	18 V	24 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 1 Output 24V 4A 72V Input
