SKE-30/76

Active

HEATSHRINK CAP BLACK 1.18-2.36"

Search across all available documentation for this part.

Active

HEATSHRINK CAP BLACK 1.18-2.36"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

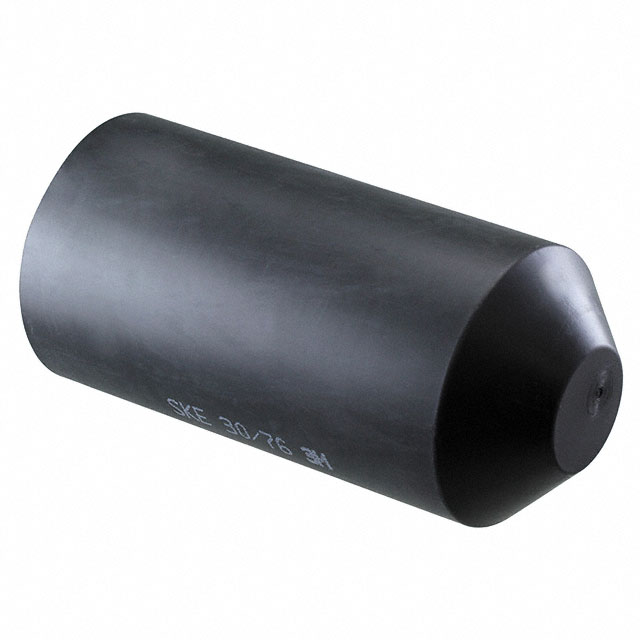

Heat Shrink Cap Black

Technical documentation and resources

Specification	SKE-30/76	SKE Series

Color	Black	Black
Features	Adhesive Coating, Flame Retardant	Adhesive Coating, Flame Retardant
Large Diameter Recovered [diameter]	30 mm	7.62 - 44.96 mm
Large Diameter Recovered [diameter]	1.181 in	0.3 - 1.77 in
Large Diameter Supplied	-	1.571 in
Large Diameter Supplied	-	20.1 - 39.9 mm
Large Diameter Supplied [diameter]	2.988 in	0.791 - 3.941 in
Large Diameter Supplied [diameter]	75.9 mm	75.9 - 100.1 mm
Material	Polyolefin (PO), Semi-Rigid	Polyolefin (PO), Semi-Rigid
Total Length Recovered	157.99 mm	55.4 - 162.61 mm
Total Length Recovered	6.22 in	2.181 - 6.402 in
Total Length Recovered	-	3.539 in
Total Length Recovered	-	89.89 mm
Type	Cap	Cap

Part	Total Length Recovered [x]	Total Length Recovered [x]	Features	Large Diameter Supplied	Large Diameter Supplied	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Type	Material	Color	Large Diameter Supplied [diameter]	Total Length Recovered	Total Length Recovered	Large Diameter Supplied [diameter]
3M SKE-15/40	3.539 in	89.89 mm	Adhesive Coating, Flame Retardant	1.571 in	39.9 mm	15 mm	0.591 in	Cap	Polyolefin (PO), Semi-Rigid	Black
3M SKE-8/20			Adhesive Coating, Flame Retardant		20.1 mm	7.62 mm	0.3 in	Cap	Polyolefin (PO), Semi-Rigid	Black	0.791 in	55.4 mm	2.181 in
3M SKE-45/100			Adhesive Coating, Flame Retardant			44.96 mm	1.77 in	Cap	Polyolefin (PO), Semi-Rigid	Black	3.941 in	162.61 mm	6.402 in	100.1 mm
3M SKE-30/76			Adhesive Coating, Flame Retardant			30 mm	1.181 in	Cap	Polyolefin (PO), Semi-Rigid	Black	2.988 in	157.99 mm	6.22 in	75.9 mm
