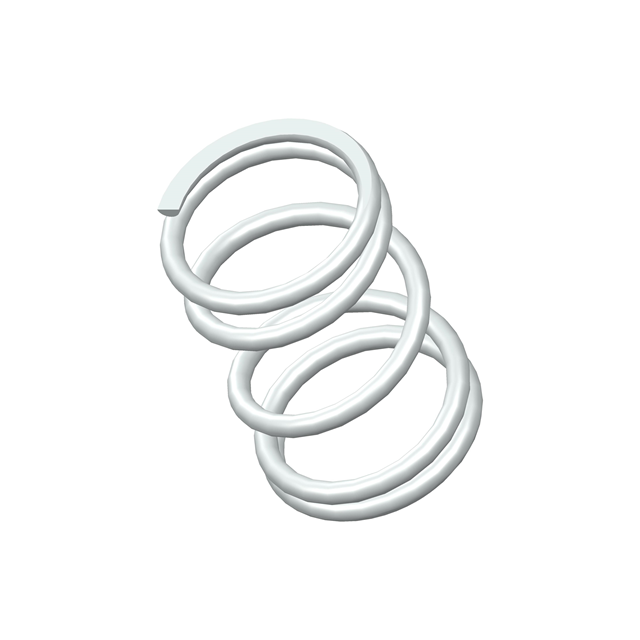

A10-36CS

Active

Century Spring Corp

COMP O= .312,L= .47,W= .031

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A10-36CS

Active

Century Spring Corp

COMP O= .312,L= .47,W= .031

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A10-36CS	A10 Series

Diameter - Inside	6.35 mm	6.35 - 10.77 mm
Diameter - Inside	-	0.083 - 16.61 mm
Diameter - Inside	-	2.11 - 6.93 mm
Diameter - Inside [diameter]	0.25 in	0.042 - 0.654 in
Diameter - Outside	-	9.53 mm
Diameter - Outside [diameter]	7.92 mm	1.73 - 18.64 mm
Diameter - Outside [diameter]	0.312 in	0.068 - 0.734 in
End Style	Ground, Closed	Closed, Ground
Finish	None	None, Zinc, Gold Iridite, Black Oxide
Free Length	11.94 mm	6.35 - 47.75 mm
Free Length	0.47 in	0.25 - 1.88 in
Load	-	0.41 - 3.4 lbs
Material	Stainless Steel	Stainless Steel, Spring Steel, Music Wire, Phosphor Bronze
Rate	18 lbs/in	0.12 - 680 lbs/in
Type	-	Compression
Wire Diameter	-	0.032 - 3.51 mm
Wire Diameter	-	0.008 - 0.138 "
Wire Diameter	-	0.024 "
Wire Diameter	-	0.81 mm
Wire Diameter [diameter]	0.031 in	0.012 - 0.053 in
Wire Diameter [diameter]	0.79 mm	0.3 - 1.35 mm

A10 Series

COMP O= .296,L= .72,W= .016

Part	Finish	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Rate	Wire Diameter	Wire Diameter	Free Length	Free Length	End Style	Material	Wire Diameter [diameter]	Wire Diameter [diameter]	Diameter - Inside
Century Spring Corp A10-16CS	None	0.264 in	6.71 mm	0.296 in	7.52 mm	0.68 lbs/in	0.41 mm	0.016 "	18.29 mm	0.72 in	Closed	Stainless Steel
Century Spring Corp A10-46CS	Zinc	0.427 in	10.85 mm	0.703 "	17.86 mm	680 lbs/in	3.51 mm	0.138 "	28.7 mm	1.13 in	Closed, Ground	Spring Steel
Century Spring Corp A10-45CS	None	0.095 in	2.41 mm	0.125 in	3.18 mm	4.2 lbs/in			13.46 mm	0.53 in	Closed	Music Wire	0.38 mm	0.015 in
Century Spring Corp A10-14CS	None	0.147 "	3.73 mm	0.219 "	5.56 mm	66 lbs/in			14.22 mm	0.56 in	Closed	Spring Steel	0.91 mm	0.036 in
Century Spring Corp A10-29CS	None	0.398 in	10.11 mm	0.468 in	11.89 mm	3.1 lbs/in	0.89 mm	0.035 in	27.69 mm	1.09 in	Closed, Ground	Stainless Steel
Century Spring Corp A10-47CS	None	0.269 in	6.83 mm	0.343 in	8.71 mm	17 lbs/in			19.05 mm	0.75 in	Closed, Ground	Spring Steel	0.94 mm	0.037 "
Century Spring Corp A10-36CS	None	0.25 in		0.312 in	7.92 mm	18 lbs/in			11.94 mm	0.47 in	Closed, Ground	Stainless Steel	0.79 mm	0.031 in	6.35 mm
Century Spring Corp A10-66CS	Zinc	0.219 in	5.56 mm	0.343 in	8.71 mm	160 lbs/in	1.57 mm	0.062 "	21.34 mm	0.84 in	Closed, Ground	Spring Steel
Century Spring Corp A10-22CS	None	0.256 in	6.5 mm	0.296 in	7.52 mm	2.2 lbs/in	0.51 mm	0.02 "	10.41 mm	0.41 in	Closed, Ground	Music Wire
Century Spring Corp A10-18CS	None	0.167 in	4.24 mm	0.219 "	5.56 mm	27 lbs/in			7.87 mm	0.31 in	Closed, Ground	Stainless Steel	0.66 mm	0.026 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.03
		50	$ 3.37
		150	$ 3.19
		300	$ 3.02
		500	$ 2.66

Description

General part information

A10 Series

COMP O= .312,L= .47,W= .031
