2HX-094-2-WT-2
ActiveBRADY
SLEEVE, 0.094 IN DIA X 1 IN W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2HX-094-2-WT-2
ActiveBRADY
SLEEVE, 0.094 IN DIA X 1 IN W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2HX-094-2-WT-2 | 2HX-094 Series |
|---|---|---|
| Color | White | Yellow, White, Black |
| Label Size | - | 0.08 " |
| Label Size | - | 0.05 - 1.2 mm |
| Label Size | - | 0.09 in |
| Label Size | - | 0.05 in |
| Label Size | - | 0.5 - 2.3 in |
| Label Size | - | 0.08 - 2 mm |
| Label Size | - | 1.2 - 58.4 mm |
| Label Size | - | 0.09 - 2.4 in |
| Label Size | - | 1.15 - 50.8 mm |
| Label Type | Heat Shrinkable | Heat Shrinkable |
| Material | Polyolefin (PO) | Polyolefin (PO) |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
2HX-094 Series
SLEEVE, 0.094 IN DIA X 1 IN W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material | Color | Label Type | Label Size [Max] | Label Size [Min] | Label Size [diameter] | Label Size [Min] | Label Size [x] | Label Size [Max] | Label Size | Label Size [diameter] | Label Size [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 2HX-094-2-YL-J-2 | -40 °C | 120 °C | Polyolefin (PO) | Yellow | Heat Shrinkable | |||||||||
BRADY 2HX-094-2-WT-J-2 | -40 °C | 120 °C | Polyolefin (PO) | White | Heat Shrinkable | |||||||||
BRADY 2HX-094-2-WT-3 | -40 °C | 120 °C | Polyolefin (PO) | White | Heat Shrinkable | 0.08 " | 1.2 mm | 0.09 in | 0.05 in | 0.67 in | 2 mm | |||
BRADY 2HX-094-2-WT-J-4 | -40 °C | 120 °C | Polyolefin (PO) | White | Heat Shrinkable | 0.05 in | 0.09 in | 0.5 " | 0.08 " | |||||
BRADY 2HX-094-2-YL | -40 °C | 120 °C | Polyolefin (PO) | Yellow | Heat Shrinkable | 0.05 in | 0.08 " | 1.2 mm, 2 mm, 2.4 mm, 50.8 mm | 0.09 in | 50.8 mm | ||||
BRADY 2HX-094-2-YL-J | -40 °C | 120 °C | Polyolefin (PO) | Yellow | Heat Shrinkable | 0.05 in | 0.08 " | 1.2 mm, 2 mm, 2.4 mm, 50.8 mm | 0.09 in | 50.8 mm | ||||
BRADY 2HX-094-2-WT-J | -40 °C | 120 °C | Polyolefin (PO) | White | Heat Shrinkable | 0.05 in | 0.08 " | 1.2 mm, 2 mm, 2.4 mm, 50.8 mm | 0.09 in | 50.8 mm | ||||
BRADY 2HX-094-2-BK-2 | -40 °C | 120 °C | Polyolefin (PO) | Black | Heat Shrinkable | |||||||||
BRADY 2HX-094-2-WT-4 | -40 °C | 120 °C | Polyolefin (PO) | White | Heat Shrinkable | 0.05 in | 0.09 in | 0.5 " | 0.08 " | |||||
BRADY 2HX-094-2-WT-SC | -40 °C | 120 °C | Polyolefin (PO) | White | Heat Shrinkable | 0.05 in | 0.08 " | 1.2 mm, 2 mm, 2.4 mm, 50.8 mm | 0.09 in | 50.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1703.87 | |
Description
General part information
2HX-094 Series

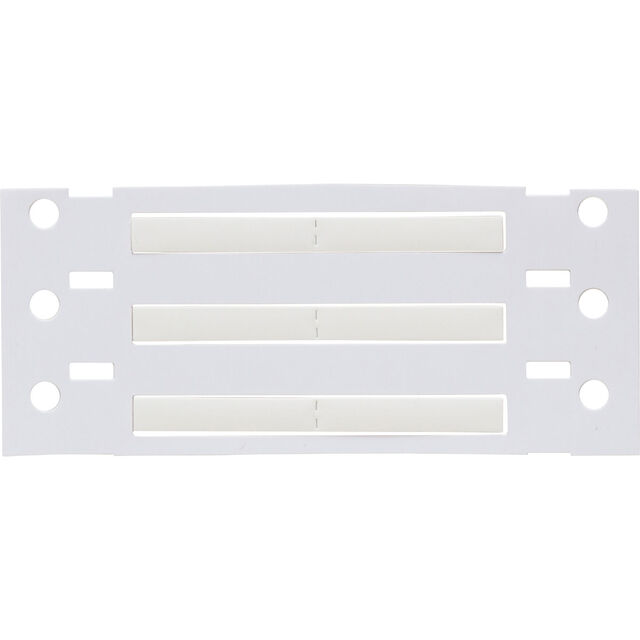

White Heat Shrinkable Label 1.00" W x 0.09" Dia (25.4mm x 2.4mm); Cable O.D. 0.05" ~ 0.08" (1.2mm ~ 2.0mm)
