Description
General part information

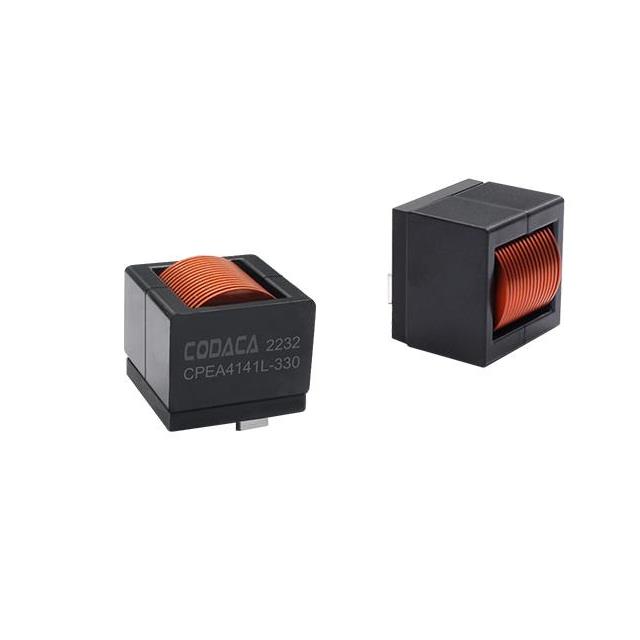

CPEA4141L-330MC
33 µH Shielded Wirewound Inductor 52 A 1.88mOhm Max Vertical, 2 PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | CPEA4141L-330MC |
|---|---|
| Current - Saturation (Isat) | 29 A |
| Current Rating | 52 A |
| DC Resistance (DCR) (Max) | 1.88 mOhm |
| Height - Seated (Max) | 1.535 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2 PC Pin, Vertical |
| Shielding | Shielded |
| Size / Dimension Length | 1.635 in |
| Size / Dimension Width | 1.614 in |
| Tolerance | 20 % |
| Type | Wirewound |
