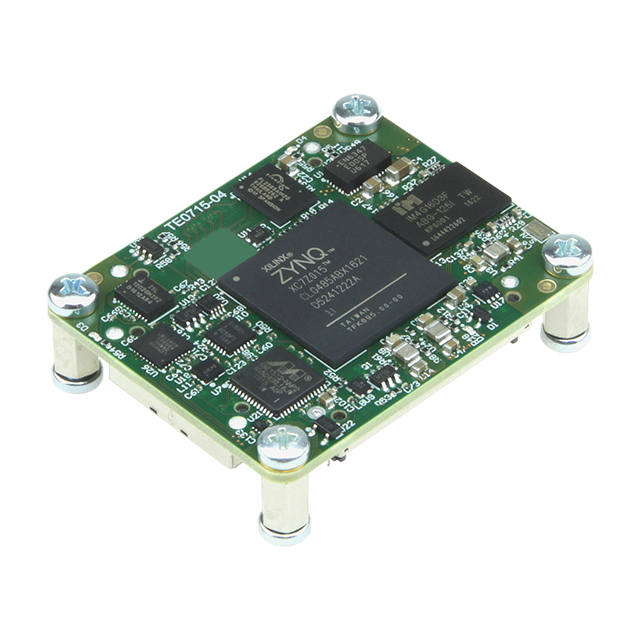

TE0715-04-15-1I

Obsolete

Trenz Electronic

IC MOD CORTEX-A9 125MHZ 1GB 32MB

Search across all available documentation for this part.

Obsolete

Trenz Electronic

IC MOD CORTEX-A9 125MHZ 1GB 32MB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TE0715 Embedded Module ARM Cortex-A9 Zynq-7000 (Z-7015) 125MHz 1GB 32MB

Technical documentation and resources

No documents available

Part	Operating Temperature [Max]	Operating Temperature [Min]	Co-Processor	Co-Processor	Speed	Flash Size	Module/Board Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Connector Type	RAM Size	Core Processor
Trenz Electronic TE0715-04-30-1I	85 °C	-40 °C	Z-7030	Zynq-7000	125 MHz	32 MB	FPGA, MCU	50 mm	1.97 "	40 mm	1.57 "	Samtec LSHM	1 GB	ARM Cortex-A9
Trenz Electronic TE0715-04-15-1I	85 °C	-40 °C	Z-7015	Zynq-7000	125 MHz	32 MB	FPGA, MCU	50 mm	1.97 "	40 mm	1.57 "	Samtec LSHM	1 GB	ARM Cortex-A9
Trenz Electronic TE0715-04-15-1I3	85 °C	-40 °C	Z-7015	Zynq-7000	125 MHz	32 MB	FPGA, MCU	50 mm	1.97 "	40 mm	1.57 "	Samtec LSHM	1 GB	ARM Cortex-A9
