DC0001/05-TG-A486G-0.3-2A
Activet-Global Technology

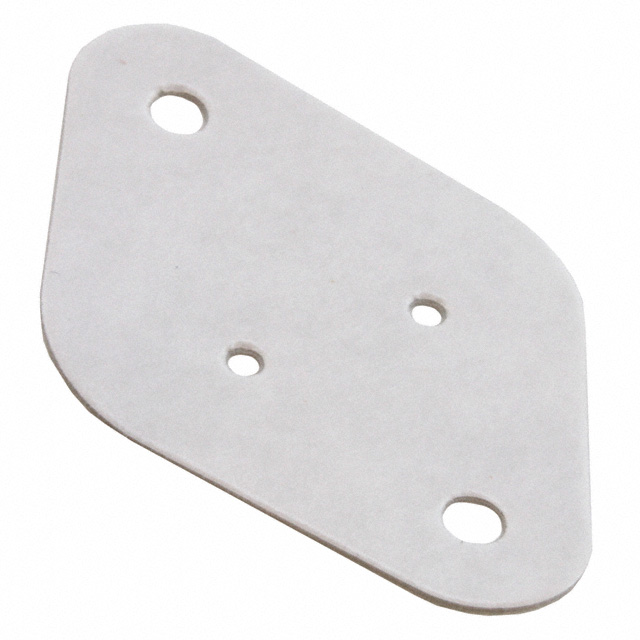

THERM PAD 41.91X28.96MM W/ADH
Deep-Dive with AI
Search across all available documentation for this part.
DC0001/05-TG-A486G-0.3-2A
Activet-Global Technology
THERM PAD 41.91X28.96MM W/ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC0001/05-TG-A486G-0.3-2A | DC0001/05 Series |
|---|---|---|
| Adhesive | Adhesive - Both Sides | Adhesive - Both Sides |
| Backing, Carrier | - | Viscose |
| Color | Gray | Yellow, White, Red, Gray |
| Material | - | Silicone |
| Outline [x] | 41.91 mm | 41.91 mm |
| Outline [y] | 28.96 mm | 28.96 mm |
| Shape | Rhombus | Rhombus |
| Shelf Life | 12 Months | 12 - 24 Months |
| Shelf Life Start | Date of Purchase | Date of Purchase |
| Thermal Conductivity | 6 W/m-K | 1.4 - 6 W/m-K |
| Thickness | - | 0.005 in |
| Thickness | - | 0.127 mm |
| Thickness | - | 0.1 mm |
| Thickness | - | 0.0039 in |
| Thickness [custom] | 0.305 mm | 0.254 - 0.305 mm |
| Thickness [custom] | 0.012 " | 0.01 - 0.012 in |
| Type | Die-Cut Pad, Sheet | Die-Cut Pad, Sheet |
| Usage | TO-3 | TO-3 |
DC0001/05 Series
THERM PAD 41.91X28.96MM W/ADH
| Part | Thermal Conductivity | Color | Usage | Shelf Life | Shape | Type | Thickness [custom] | Thickness [custom] | Adhesive | Outline [y] | Outline [x] | Material | Backing, Carrier | Thickness [x] | Thickness [x] | Shelf Life Start | Thickness | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology DC0001/05-TG-A373F-0.25-2A | 1.4 W/m-K | Yellow | TO-3 | 12 Months | Rhombus | Die-Cut Pad, Sheet | 0.254 mm | 0.01 in | Adhesive - Both Sides | 28.96 mm | 41.91 mm | |||||||
t-Global Technology DC0001/05-TI900-0.12-2A | 1.8 W/m-K | White | TO-3 | 24 Months | Rhombus | Die-Cut Pad, Sheet | Adhesive - Both Sides | 28.96 mm | 41.91 mm | Silicone | Viscose | 0.005 in | 0.127 mm | |||||
t-Global Technology DC0001/05-TG-A482K-0.1-0 | 2.3 W/m-K | Red | TO-3 | 24 Months | Rhombus | Die-Cut Pad, Sheet | 28.96 mm | 41.91 mm | Silicone | Date of Purchase | 0.1 mm | 0.0039 in | ||||||
t-Global Technology DC0001/05-TG-A486G-0.3-2A | 6 W/m-K | Gray | TO-3 | 12 Months | Rhombus | Die-Cut Pad, Sheet | 0.305 mm | 0.012 " | Adhesive - Both Sides | 28.96 mm | 41.91 mm | Date of Purchase |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 48 | $ 3.86 | |
Description
General part information
DC0001/05 Series
Thermal Pad Gray 41.91mm x 28.96mm Rhombus Adhesive - Both Sides
