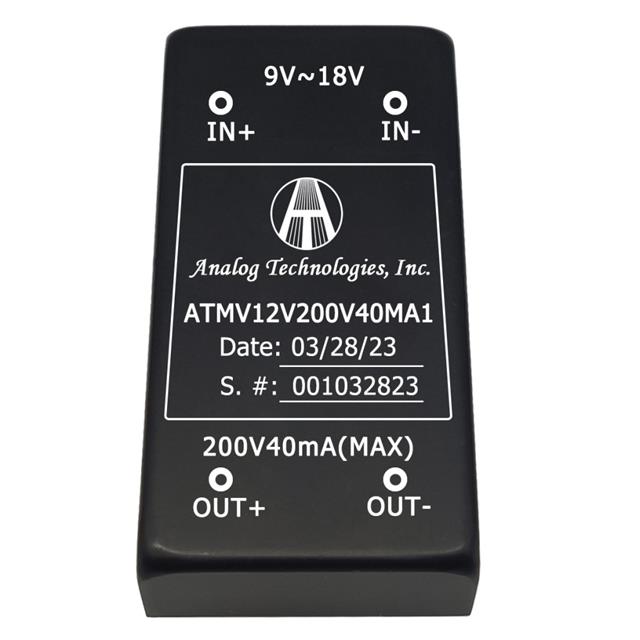

ATMV12V200V40MA1
ActiveAnalog Technologies, Inc.
12V 8W ISOLATED DC-DC POWER MODU
ATMV12V200V40MA1
ActiveAnalog Technologies, Inc.
12V 8W ISOLATED DC-DC POWER MODU
Description
General part information
ATMV12V200V40MA1
Isolated Module DC DC Converter 1 Output 200V 40mA 10V - 18V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ATMV12V200V40MA1 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 40 mA |
| Efficiency | 78 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 8 W |
| Size / Dimension Height | 0.41 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 18 V |
| Voltage - Input (Min) | 10 VDC |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 200 V |
