0002065101

Active

Molex

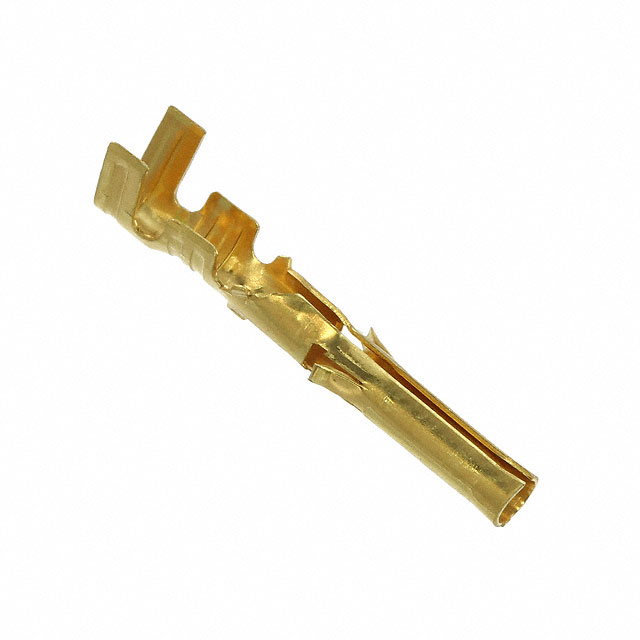

CONN SOCKET 18-24AWG CRIMP GOLD

Search across all available documentation for this part.

Active

Molex

CONN SOCKET 18-24AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 24-30AWG TIN CRIMP

Part	Contact Finish	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]
Molex 0002061131	Tin	Power	0.51 µm	20 µin	Crimp	Socket	24 AWG	30 AWG
Molex 0002065101	Gold	Power	0.76 Ám	30 Áin	Crimp	Socket	17.5 AWG	24 AWG
Molex 0002066105	Gold		1.27 µm	50 µin	Crimp	Pin	17.5 AWG	24 AWG
Molex 0002066102	Gold	Power	0.76 Ám	30 Áin	Crimp	Pin	17.5 AWG	24 AWG
Molex 0002062101	Tin	Power	0.51 µm	20 µin	Crimp	Pin	17.5 AWG	24 AWG
Molex 0002061143
Molex 0002066118	Gold		0.76 Ám	30 Áin	Crimp	Pin	17.5 AWG	24 AWG
Molex 0002066143	Gold		0.76 Ám	30 Áin	Crimp	Pin	24 AWG	30 AWG
Molex 0002065139	Gold		0.76 Ám	30 Áin	Crimp	Socket	24 AWG	30 AWG
Molex 0002065147	Gold		0.76 Ám	30 Áin	Crimp	Socket	24 AWG	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Gold 18-24 AWG Crimp Power
