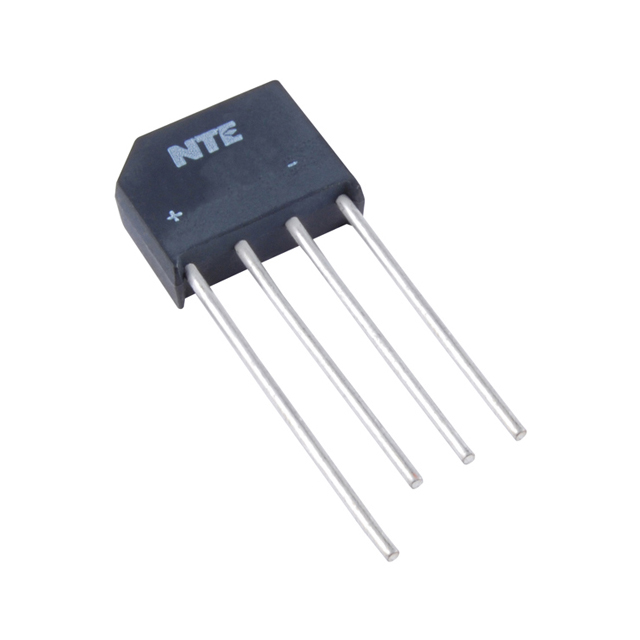

NTE5309
ActiveNTE Electronics, Inc
R-SI BRIDGE 200V 4A
NTE5309
ActiveNTE Electronics, Inc
R-SI BRIDGE 200V 4A
Description
General part information
NTE5309
Bridge Rectifier Single Phase Standard 200 V Through Hole 4-SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE5309 |
|---|---|
| Current - Average Rectified (Io) | 4 A |
| Current - Reverse Leakage | 10 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 4-ESIP |
| Package Name | 4-SIP |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1.1 V |
| Voltage - Peak Reverse (Max) | 200 V |
