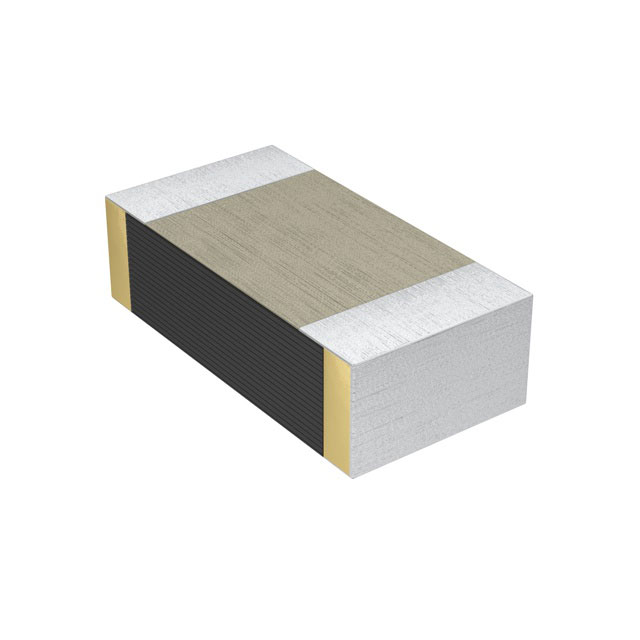

Specification	ECH-U1C123JX5

Applications	General Purpose
Capacitance	0.012 µF
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized - Stacked
Height - Seated (Max)	0.043 in
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension Length	0.126 in
Size / Dimension Width	0.063 in
Termination	Solder Pads
Tolerance	5 %
Voltage Rating - AC	11 V
Voltage Rating - DC	16 V

ECH-U1 Series

...

Part	Voltage Rating - AC	Mounting Type	Applications	Height - Seated (Max)	Package / Case	Capacitance	Termination	Dielectric Material	Tolerance	Voltage Rating - DC	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Width
Panasonic Electronic Components ECH-U1H331JB5	30 V	Surface Mount	General Purpose	0.039 in	0805 (2012 Metric)	330 pF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	5 %	50 V	125 °C	-55 °C	0.079 in	0.049 in
Panasonic Electronic Components ECH-U1H101GB5	30 V	Surface Mount	General Purpose	0.039 in	0805 (2012 Metric)	100 pF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	2 %	50 V	125 °C	-55 °C	0.079 in	0.049 in
Panasonic Electronic Components ECH-U1H222GX5	30 V	Surface Mount	General Purpose	0.043 in	0805 (2012 Metric)	2200 pF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	2 %	50 V	125 °C	-55 °C	0.079 in	0.049 in
Panasonic Electronic Components ECH-U1C561JX5	11 V	Surface Mount	General Purpose	0.033 in	0603 (1608 Metric)	560 pF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	5 %	16 V	125 °C	-55 °C	0.063 in	0.031 in
Panasonic Electronic Components ECH-U1H822JX5	30 V	Surface Mount	General Purpose	0.051 in	1206 (3216 Metric)	8200 pF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	5 %	50 V	125 °C	-55 °C	0.126 in	0.063 in
Panasonic Electronic Components ECH-U1C332JB5	11 V	Surface Mount	General Purpose	0.039 in	0805 (2012 Metric)	3300 pF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	5 %	16 V	125 °C	-55 °C	0.079 in	0.049 in
Panasonic Electronic Components ECH-U1H151GX5	30 V	Surface Mount	General Purpose	0.043 in	0805 (2012 Metric)	150 pF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	2 %	50 V	125 °C	-55 °C	0.079 in	0.049 in
Panasonic Electronic Components ECH-U1C392JX5	11 V	Surface Mount	General Purpose	0.043 in	0805 (2012 Metric)	3900 pF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	5 %	16 V	125 °C	-55 °C	0.079 in	0.049 in
Panasonic Electronic Components ECH-U1H124GX9	30 V	Surface Mount	General Purpose	0.083 in	2416 (6041 Metric)	0.12 µF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	2 %	50 V	125 °C	-55 °C	0.236 in	0.161 in
Panasonic Electronic Components ECH-U1H473JX9	30 V	Surface Mount	General Purpose	0.067 in	1913 (4833 Metric)	47 nF	Solder Pads	Metallized - Stacked Polyphenylene Sulfide (PPS)	5 %	50 V	125 °C	-55 °C	0.189 in	0.13 in
