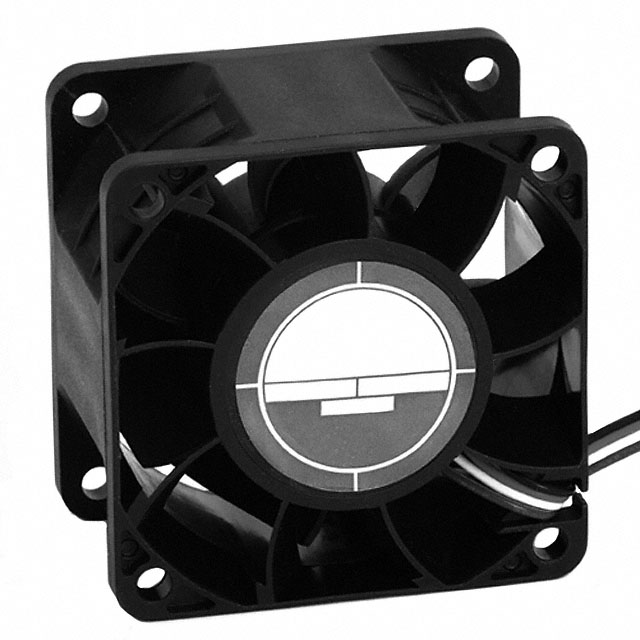

OD6038-48MBVXC5
ActiveOrion Fans
FAN AXIAL 60X38MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
OD6038-48MBVXC5
ActiveOrion Fans
FAN AXIAL 60X38MM 48VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD6038-48MBVXC5 |
|---|---|
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, PWM Control |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 520 | $ 15.51 | |
Description
General part information
OD6038-48MBVXC5
Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 3 Wire Leads
Documents
Technical documentation and resources
No documents available
