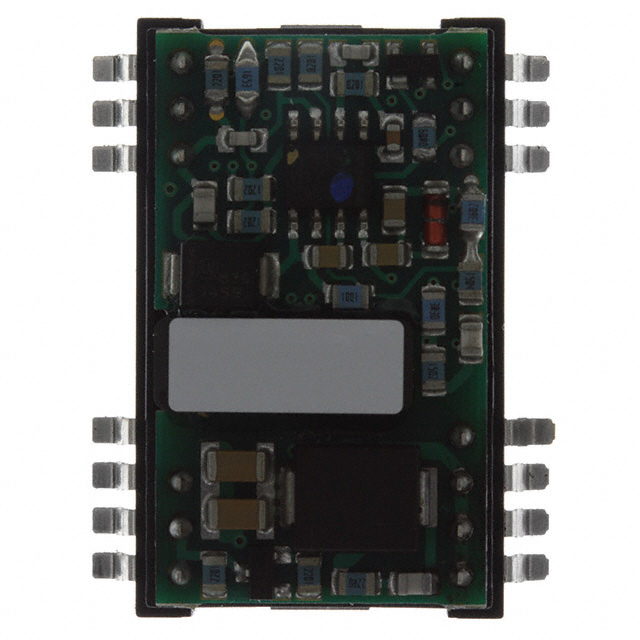

NVS0.7EG-M6G

Active

Bel Power Solutions

DC DC CONVERTER 5V 3.5W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 5V 3.5W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	196	$ 66.81

General part information

Isolated Module DC DC Converter 1 Output 5V 700mA 18V - 75V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 3.5W

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Current - Output (Max) [Max]	Number of Outputs	Features	Voltage - Input (Max) [Max]	Voltage - Isolation	Mounting Type	Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Output 1	Voltage - Input (Min) [Min]	Power (Watts)
Bel Power Solutions NVS0.7EG-M6G	0.81 in	20.6 mm	1.3 "	8.4 mm	33 mm	0.33 in	24-SMD Module, 14 Leads	700 mA	1	OCP	75 V	1.5 kV	Surface Mount	Isolated Module	81 %	-40 °C	110 °C	ITE (Commercial)	5 V	18 V
Bel Power Solutions NVS0.7EG-M6	0.81 in	20.6 mm	1.3 "	8.4 mm	33 mm	0.33 in	24-SMD Module, 14 Leads	700 mA	1	OCP	75 V	1.5 kV	Surface Mount	Isolated Module	81 %	-40 °C	110 °C	ITE (Commercial)	5 V	18 V	6 W
