A3RRB-1036M
ActiveTE Connectivity AMP Connectors
IDC CABLE - APR10B/AE10M/APR10B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3RRB-1036M
ActiveTE Connectivity AMP Connectors
IDC CABLE - APR10B/AE10M/APR10B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3RRB-1036M | A3RRB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Plug to Plug | Plug to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 3 ft | 1.5 - 3 ft |
| Length [x] | 914.4 mm | 457.2 - 914.4 mm |
| Number of Positions | 10 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.52 | |
| 10 | $ 21.15 | |||
| 25 | $ 19.63 | |||
| 50 | $ 18.55 | |||
| 100 | $ 17.54 | |||
| 250 | $ 16.29 | |||
| 500 | $ 15.50 | |||
A3RRB Series
IDC CABLE - APR26B/AE26G/APR26B
| Part | Pitch - Connector | Pitch - Connector | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Length | Length | Length | Shielding | Connector Type | Number of Rows | Features | Cable Termination | Pitch - Cable | Pitch - Cable | Contact Finish | Color | Length [x] | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3RRB-2606G | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 26 | 152.4 mm | 6 " | 0.5 ' | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | ||||
TE Connectivity AMP Connectors A3RRB-3406M | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 34 | 152.4 mm | 6 " | 0.5 ' | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | Multiple, Ribbon | |||
TE Connectivity AMP Connectors A3RRB-6406G | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 64 | 152.4 mm | 6 " | 0.5 ' | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | ||||
TE Connectivity AMP Connectors A3RRB-3406G | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 34 | 152.4 mm | 6 " | 0.5 ' | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | ||||
TE Connectivity AMP Connectors A3RRB-3436G | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 34 | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | 3 ft | 914.4 mm | |||||
TE Connectivity AMP Connectors A3RRB-1618M | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | Multiple, Ribbon | 1.5 ft | 457.2 mm | 16 | ||||
TE Connectivity AMP Connectors A3RRB-1618G | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | 1.5 ft | 457.2 mm | 16 | |||||
TE Connectivity AMP Connectors A3RRB-1006G | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 10 | 152.4 mm | 6 " | 0.5 ' | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | ||||
TE Connectivity AMP Connectors A3RRB-1018G | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 10 | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | 1.5 ft | 457.2 mm | |||||
TE Connectivity AMP Connectors A3RRB-1036M | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 10 | Unshielded | Plug to Plug | 2 | Polarizing Key, Strain Relief | IDC | 0.05 " | 1.27 mm | Gold | Multiple, Ribbon | 3 ft | 914.4 mm |
Description
General part information
A3RRB Series

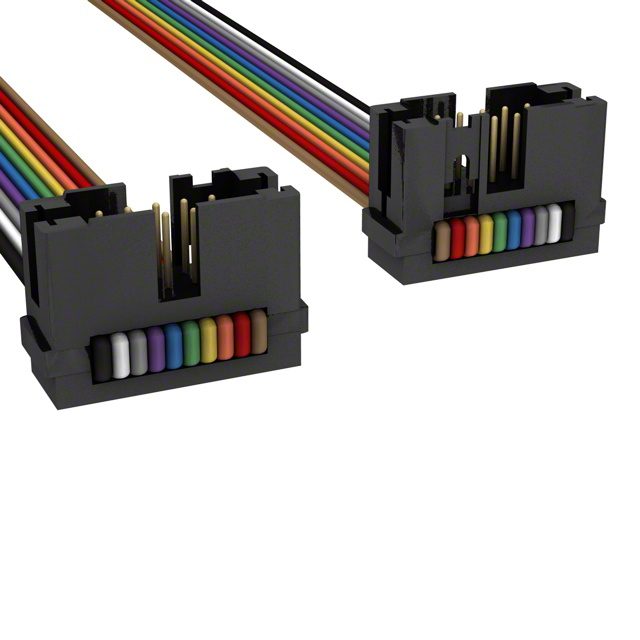

10 Position Cable Assembly Rectangular Plug to Plug 3.00' (914.40mm)
