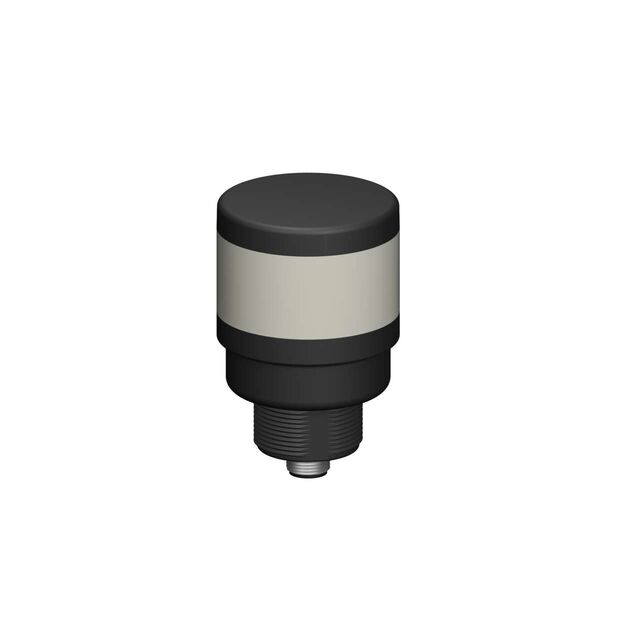

TL50W

Active

BANNER ENGINEERING

TOWER LIGHT: 1-COLOR INDICATOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

TOWER LIGHT: 1-COLOR INDICATOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 96.00
Newark	Each	1	$ 99.00

General part information

Stack Light Complete Unit White LED Wire Leads

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TL50W	- Series

Cable Type	-	Round Cable
Color	-	Black
Connector Type	-	Plug to Plug
Features	-	Toggle Switch, Alarm, Dip Switch, Molded Plugs
Function - Audible	-	Multiple, Programmable
Function - Lighting	Steady	Steady, Multiple, Flashing, Rotating
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, IP65 - Dust Tight, Water Resistant, IP50
Length	-	50.84 ft
Length	-	7.6 - 15.5 m
Length	-	24.93 - 75.44 ft
Length	-	22.99 m
Light Color	White	Yellow, Green, Red, Orange, Blue, White, Magenta
Mounting Type	-	Free Hanging (In-Line)
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Number of Stacks	1	1 - 3
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 - -20 C
Shielding	-	Shielded
Termination Style	Wire Leads	Wire Leads, Screw Terminal, Connector, M12
Type	Complete Unit	Complete Unit, Controller, Acoustic Element, Mounting Base, Shield
Voltage - Supply	30 VDC	24 - 30 VDC
Voltage - Supply [Max]	24 VAC	24 - 240 VAC
Voltage - Supply [Min]	18 VAC	10 - 100 VAC

TOWER LIGHT: 2-COLOR INDICATOR

Part	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Function - Lighting	Number of Stacks	Termination Style	Voltage - Supply [Max]	Voltage - Supply	Voltage - Supply [Min]	Light Color	Features	Function - Audible
BANNER ENGINEERING TL50GY	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-20 C	Steady	2	Wire Leads	24 VAC	30 VDC	18 VAC
BANNER ENGINEERING TL50YQ	Complete Unit	IP65 - Dust Tight, Water Resistant	50 °C	-40 °C	Steady	1	Wire Leads	30 VDC	24 VAC	18 V	Yellow
BANNER ENGINEERING TL50BQ	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-40 °C	Steady	1	Wire Leads	30 VDC	24 VAC	18 V
BANNER ENGINEERING TL50G	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-40 °C	Steady	1	Wire Leads	30 VDC		18	Green
BANNER ENGINEERING TL50P2	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-40 °C	Multiple	2	Wire Leads	30 VDC		10 VDC	Green, Red
BANNER ENGINEERING LC80T	Controller	IP50	50 °C	-30 ░C	Flashing		Screw Terminal					Toggle Switch
BANNER ENGINEERING TL50GQ	Complete Unit	IP65 - Dust Tight, Water Resistant	50 °C	-40 °C	Steady	1	Connector	30 VDC	24 VAC	18 V	Green
BANNER ENGINEERING TL70AQ	Acoustic Element	IP65 - Dust Tight, Water Resistant	50 °C	-40 °C		1	Connector	30 VDC		12 V		Alarm	Multiple
BANNER ENGINEERING TL70OQ	Complete Unit	IP65 - Dust Tight, Water Resistant	50 °C	-40 °C	Steady	1	M12	30 VDC		12 V	Orange	Dip Switch
BANNER ENGINEERING TL50RQ	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-40 °C	Steady	1	Wire Leads	30 VDC	24 VAC	18 V	Red
