ES1J
ActiveHY Electronic (Cayman) Limited
SURFACE MOUNT SUPER FAST GLASS P
ES1J
ActiveHY Electronic (Cayman) Limited
SURFACE MOUNT SUPER FAST GLASS P
Description
General part information
ES1J

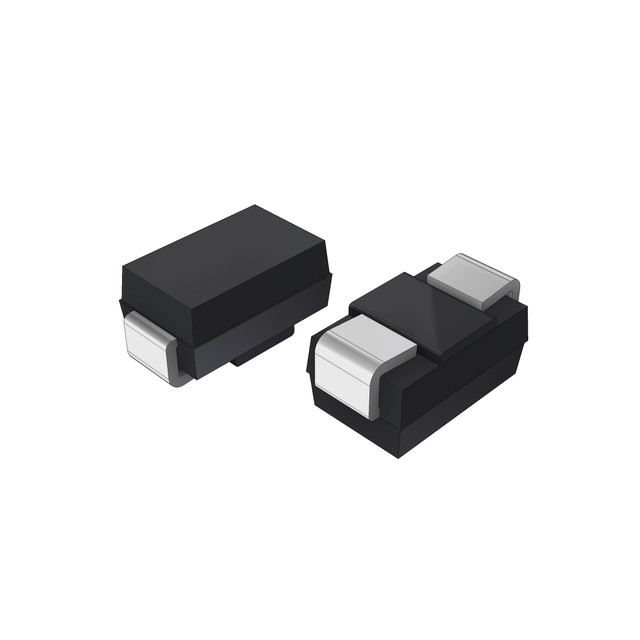

Diode 600 V 1A Surface Mount SMA
Technical Specifications
Parameters and characteristics for this part
| Specification | ES1J |
|---|---|
| Capacitance | 25 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage | 5 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | SMA, DO-214AC |
| Package Name | SMA |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 35 ns |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) | 1.7 V |
