1-828588-6
ObsoleteTE Connectivity AMP Connectors

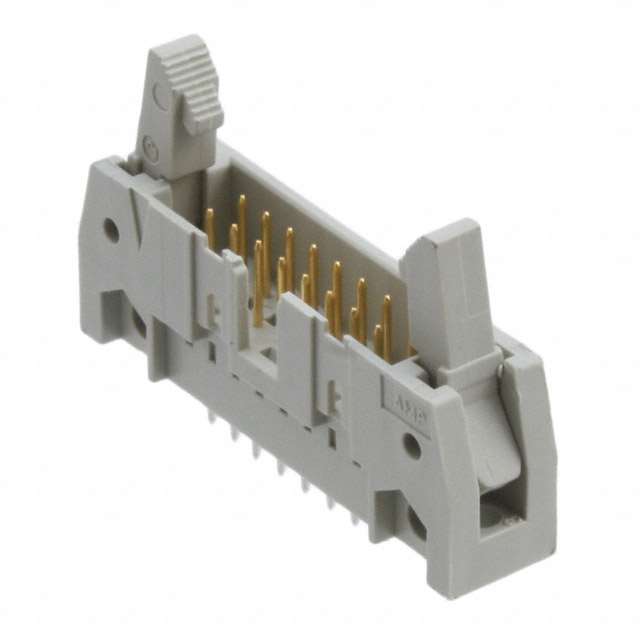

CONN HEADER VERT 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-828588-6
ObsoleteTE Connectivity AMP Connectors
CONN HEADER VERT 16POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-828588-6 | 828588 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 31.5 µin | 31.5 µin |
| Contact Finish Thickness - Mating | 0.8 µm | 0.8 µm |
| Contact Finish Thickness - Post | 3 µm | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin | 118.1 µin |
| Contact Length - Post | 0.118 in | 0.118 in |
| Contact Length - Post | 3 mm | 3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Features | - | Mounting Flange |
| Insulation Color | Gray | Gray |
| Insulation Height | 13.8 mm | 13.8 mm |
| Insulation Height | 0.543 in | 0.543 in |
| Insulation Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 60 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Overall Contact Length | 0.652 in | 0.652 in |
| Overall Contact Length | 16.56 mm | 16.56 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
828588 Series
CONN HEADER VERT 34POS 2.54MM
| Part | Insulation Color | Number of Rows | Contact Type | Insulation Height | Insulation Height | Termination | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Contact Finish - Post | Contact Material | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Insulation Material | Overall Contact Length | Overall Contact Length | Contact Shape | Pitch - Mating | Pitch - Mating | Connector Type | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Fastening Type | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-828588-4 | Gray | 2 | Male Pin | 13.8 mm | 0.543 in | Solder | Through Hole | 2.54 mm | 0.1 in | All | Tin | Brass | 34 | 3 µm | 118.1 µin | Board to Cable/Wire | Polyester, Glass Filled | 0.652 in | 16.56 mm | Circular | 0.1 in | 2.54 mm | Header | 0.118 in | 3 mm | Gold or Gold-Palladium | Latch Lock/Eject Hooks | Shrouded - 4 Wall | 31.5 µin | 0.8 µm | ||
TE Connectivity AMP Connectors 1-828588-6 | Gray | 2 | Male Pin | 13.8 mm | 0.543 in | Solder | Through Hole | 2.54 mm | 0.1 in | All | Tin | Brass | 3 µm | 118.1 µin | Board to Cable/Wire | Polyester, Glass Filled | 0.652 in | 16.56 mm | Circular | 0.1 in | 2.54 mm | Header | 0.118 in | 3 mm | Gold or Gold-Palladium | Latch Lock/Eject Hooks | Shrouded - 4 Wall | 31.5 µin | 0.8 µm | 16 | ||
TE Connectivity AMP Connectors 6-828588-0 | Gray | 2 | Male Pin | 13.8 mm | 0.543 in | Solder | Through Hole | 2.54 mm | 0.1 in | All | Tin | Brass | 60 | 3 µm | 118.1 µin | Board to Cable/Wire | Polyester, Glass Filled | 0.652 in | 16.56 mm | Circular | 0.1 in | 2.54 mm | Header | 0.118 in | 3 mm | Gold or Gold-Palladium | Latch Lock/Eject Hooks | Shrouded - 4 Wall | 31.5 µin | 0.8 µm | ||
TE Connectivity AMP Connectors 2-828588-0 | Gray | 2 | Male Pin | 13.8 mm | 0.543 in | Solder | Through Hole | 2.54 mm | 0.1 in | All | Tin | Brass | 20 | 3 µm | 118.1 µin | Board to Cable/Wire | Polyester, Glass Filled | 0.652 in | 16.56 mm | Circular | 0.1 in | 2.54 mm | Header | 0.118 in | 3 mm | Gold or Gold-Palladium | Latch Lock/Eject Hooks | Shrouded - 4 Wall | 31.5 µin | 0.8 µm | ||
TE Connectivity AMP Connectors 1-828588-0 | Gray | 2 | Male Pin | 13.8 mm | 0.543 in | Solder | Through Hole | 2.54 mm | 0.1 in | All | Tin | Brass | 10 | 3 µm | 118.1 µin | Board to Cable/Wire | Polyester, Glass Filled | 0.652 in | 16.56 mm | Circular | 0.1 in | 2.54 mm | Header | 0.118 in | 3 mm | Gold or Gold-Palladium | Latch Lock/Eject Hooks | Shrouded - 4 Wall | 31.5 µin | 0.8 µm | Mounting Flange |
