VLCF5028T-4R7N1R5-2
ActiveTDK Corporation
FIXED IND 4.7UH 1.58A 43MOHM SMD
VLCF5028T-4R7N1R5-2
ActiveTDK Corporation
FIXED IND 4.7UH 1.58A 43MOHM SMD
Description
General part information
VLCF5028T-4R7N1R5-2

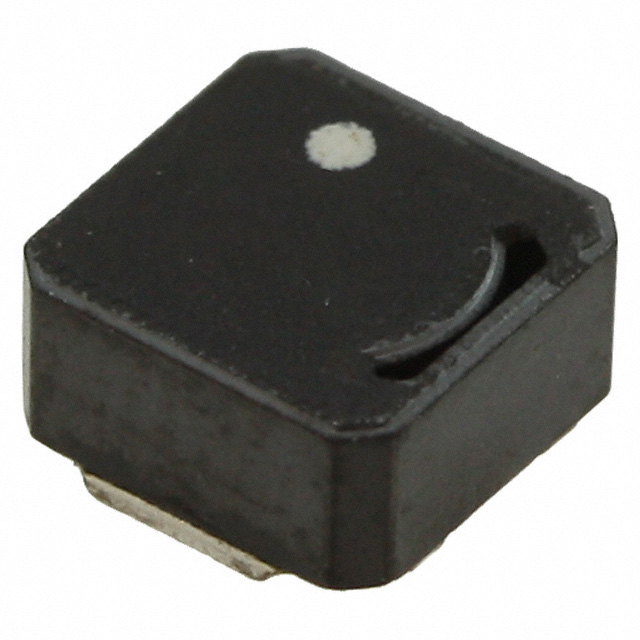

4.7 µH Shielded Drum Core, Wirewound Inductor 1.58 A 43mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLCF5028T-4R7N1R5-2 |
|---|---|
| Current - Saturation (Isat) | 1.58 A |
| Current Rating | 1.58 A |
| DC Resistance (DCR) (Max) | 43 mOhm |
| Height - Seated (Max) | 0.11 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
