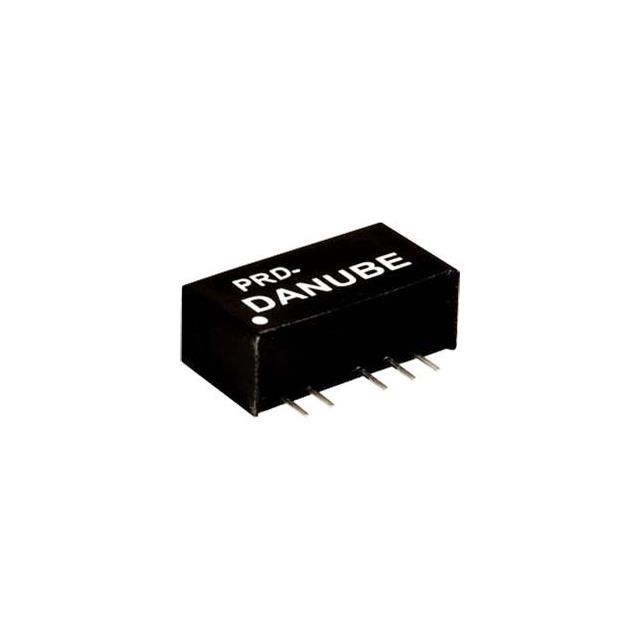

PRD-1215G
ActiveDiwell Electronics
DC DC CONVERTER +/-15V 1W
PRD-1215G
ActiveDiwell Electronics
DC DC CONVERTER +/-15V 1W
Description
General part information
PRD-1215G
Isolated Module DC DC Converter 2 Output 15V -15V 34mA, 34mA 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PRD-1215G |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) Options | 34mA |
| Efficiency | 62 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -25 °C |
| Package Leads | 5 Leads |
| Package Name | 7-SIP |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 0.77 in |
| Size / Dimension Width | 0.3 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
