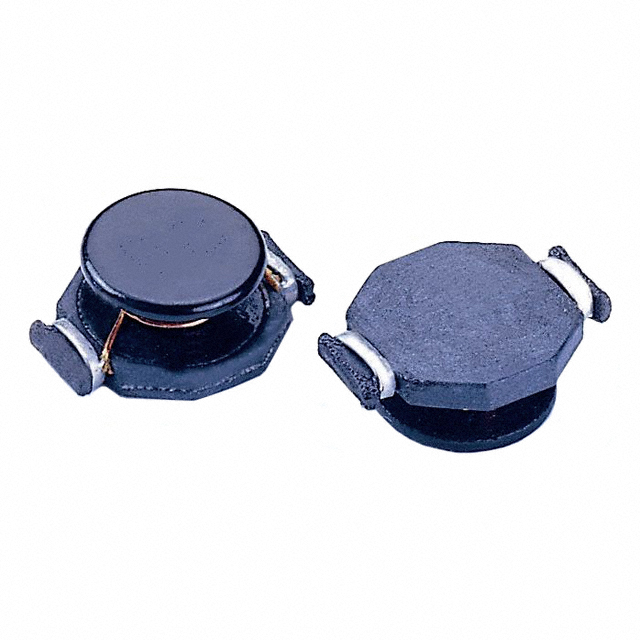

SC3316FH-1R0
ActiveSignal Transformer
FIXED IND 1UH 10.5A 6 MOHM SMD
SC3316FH-1R0
ActiveSignal Transformer
FIXED IND 1UH 10.5A 6 MOHM SMD
Description
General part information
SC3316FH-1R0
1 µH Unshielded Wirewound Inductor 10.5 A 6mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC3316FH-1R0 |
|---|---|
| Current - Saturation (Isat) | 11 A |
| Current Rating | 10.5 A |
| DC Resistance (DCR) (Max) | 6 mOhm |
| Height - Seated (Max) | 0.25 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.394 in |
| Tolerance | 30 % |
| Type | Wirewound |
