Specification	1598RCBK

Area (L x W)	42.9 in²
Color	Black
Container Type	Box
Design	Split Sides, End Panel(s)
Features	Card Guides, EMI Shielded, PCB Supports
Height	2.008 in
Material	ABS
Material Flammability Rating	UL94 V-0
Ratings	IP54
Size / Dimension Length	7.067 in
Size / Dimension Width	6.063 in

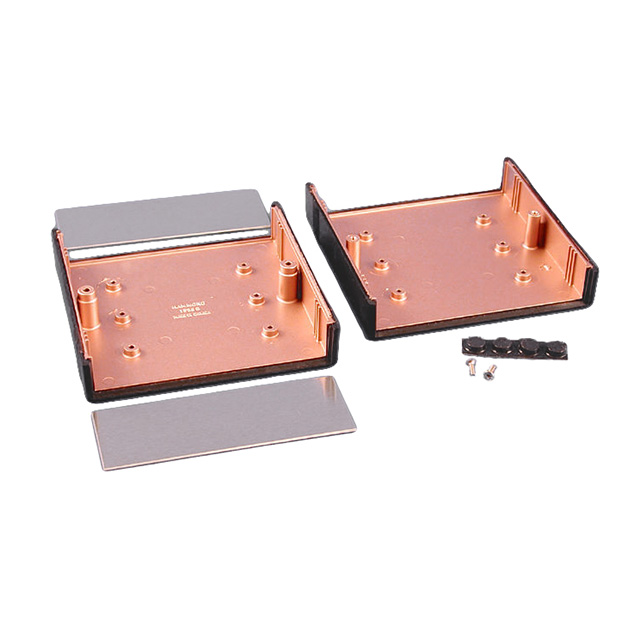

1598 Series

Part	Area (L x W)	Material	Size / Dimension Width	Size / Dimension Length	Design	Color	Container Type	Height	Material Flammability Rating	Ratings	Features	For Use With/Related Products	Accessory Type	Weight	Drive Type	Type	Thread Size	Length - Below Head	Screw Head Type
Hammond Manufacturing 1598RDBK	57.2 in²	ABS	7.077 in	8.075 in	End Panel(s) Split Sides	Black	Box	2.488 in	UL94 V-0	IP54	Card Guides EMI Shielded PCB Supports
Hammond Manufacturing 1598TH1												1598 C E F G Series	Bail Feet
Hammond Manufacturing 1598BGY	28 in²	ABS	5.287 in	5.323 in	End Panel(s) Split Sides	Gray	Box	2.008 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports			0.709 lb
Hammond Manufacturing 1598CBK	42.9 in²	ABS	6.063 in	7.067 in	End Panel(s) Split Sides	Black	Box	2.008 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports			0.709 lb
Hammond Manufacturing 1598HBK	87 in²	ABS	7.87 in	11.059 in	End Panel(s) Split Sides	Black	Box	1.614 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports			1.4 lbs
Hammond Manufacturing 1598CGY	42.9 in²	ABS	6.063 in	7.067 in	End Panel(s) Split Sides	Gray	Box	2.008 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports
Hammond Manufacturing 1598BBSGY	42.9 in²	ABS	6.083 in	7.047 in	End Panel(s) Split Sides	Gray	Box	1.378 in		IP54	Card Guides PCB Supports			0.531 lb
Hammond Manufacturing 1598TS100											Self Tapping				Phillips	Sheet Metal Screw	#4	0.625 in	Flat Head
Hammond Manufacturing 1598EBK	39.3 in²	ABS	6.246 in	6.313 in	End Panel(s) Split Sides	Black	Box	3.354 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports			0.953 lb
Hammond Manufacturing 1598DBK	57.2 in²	ABS	7.077 in	8.075 in	End Panel(s) Split Sides	Black	Box	2.488 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports			0.959 lb
