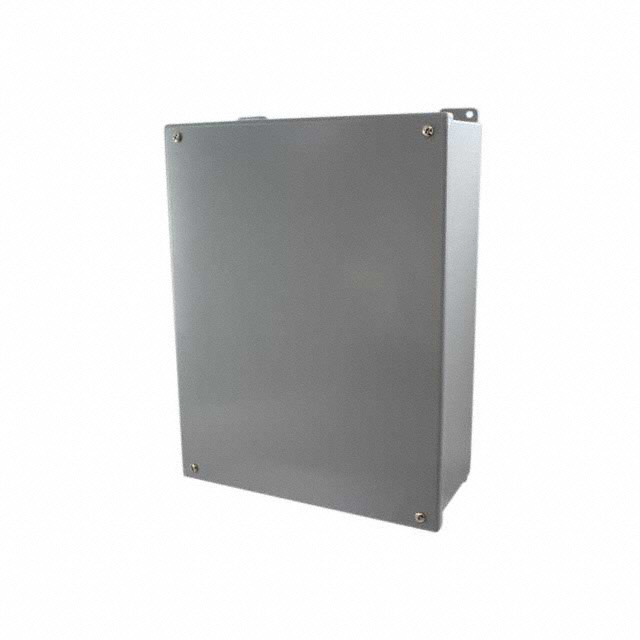

1438V

Active

Hammond Manufacturing

BOX STEEL GRAY 14"L X 10.75"W

Deep-Dive with AI

Search across all available documentation for this part.

1438V

Active

Hammond Manufacturing

BOX STEEL GRAY 14"L X 10.75"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 194.98
		5	$ 191.49
		10	$ 188.01
		25	$ 185.23
		50	$ 181.05

Description

General part information

1438 Series

Box Metal, Steel Gray Hinged Door, Lid 14.000" L x 10.750" W (355.60mm x 273.05mm) X 4.750" (120.65mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1438V	1438 Series

Area (L x W)	974 cm²	103 - 974 cm˛
Area (L x W)	151 in²	16 - 151 in˛
Area (L x W)	-	46.9 in²
Area (L x W)	-	303 cm²
Area (L x W)	-	155 cm²
Area (L x W)	-	24 in²
Color	Gray	Gray
Container Type	Box	Box
Design	Hinged Door, Lid	Cover Included, Hinged Door, Lid
Height [z]	120.65 mm	120.65 mm
Height [z]	4.75 in	4.75 in
Material	Metal, Steel	Metal, Steel
Ratings	IP54, UL-508, NEMA 13, NEMA 12	IP54, UL-508, NEMA 13, NEMA 12
Size / Dimension	-	101.6 mm
Size / Dimension [x]	355.6 mm	101.6 - 355.6 mm
Size / Dimension [x]	14 in	4 - 14 in
Size / Dimension [y]	10.75 in	4 - 10.75 "
Size / Dimension [y]	273.05 mm	101.6 - 273.05 mm
Thickness	14 Gauge	14 Gauge
Weight	11 lbs	3.1 - 11 lbs
Weight	5 kg	1.4 - 5 kg

1438 Series

BOX STEEL GRAY 4"L X 4"W

Part	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Ratings	Thickness	Design	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Weight	Weight	Material	Color	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]
Hammond Manufacturing 1438A	120.65 mm	4.75 in	16 in˛	103 cm˛	IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Cover Included	Box	4 in	101.6 mm	101.6 mm	4 "	1.4 kg	3.1 lbs	Metal, Steel	Gray
Hammond Manufacturing 1438H	120.65 mm	4.75 in	59.4 in²	383 cm²	IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Hinged Door, Lid	Box	9.5 "	241.3 mm	158.75 mm	6.25 "	2.3 kg	5 lbs	Metal, Steel	Gray
Hammond Manufacturing 1438F	120.65 mm	4.75 in			IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Hinged Door, Lid	Box	7.5 in	190.5 mm	158.75 mm	6.25 "	2.3 kg	5 lbs	Metal, Steel	Gray	46.9 in²	303 cm²
Hammond Manufacturing 1438D	120.65 mm	4.75 in	40 in²	258 cm²	IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Hinged Door, Lid	Box	10 in	254 mm	101.6 mm	4 "	2.3 kg	5 lbs	Metal, Steel	Gray
Hammond Manufacturing 1438K	120.65 mm	4.75 in	80.8 in²	521 cm²	IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Hinged Door, Lid	Box	9.5 "	241.3 mm	215.9 mm	8.5 "	3.2 kg	7 lbs	Metal, Steel	Gray
Hammond Manufacturing 1438C	120.65 mm	4.75 in	32 in²	206 cm²	IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Hinged Door, Lid	Box	8 "	203.2 mm	101.6 mm	4 "	2.3 kg	5 lbs	Metal, Steel	Gray
Hammond Manufacturing 1438B	120.65 mm	4.75 in			IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Hinged Door, Lid	Box	6 in	152.4 mm		4 "	1.8 kg	4 lbs	Metal, Steel	Gray			155 cm²	24 in²	101.6 mm
Hammond Manufacturing 1438S	120.65 mm	4.75 in	126 in²	813 cm²	IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Hinged Door, Lid	Box	11.75 in	298.45 mm	273.05 mm	10.75 in	5 kg	11 lbs	Metal, Steel	Gray
Hammond Manufacturing 1438V	120.65 mm	4.75 in	151 in²	974 cm²	IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Hinged Door, Lid	Box	14 in	355.6 mm	273.05 mm	10.75 in	5 kg	11 lbs	Metal, Steel	Gray
Hammond Manufacturing 1438O	120.65 mm	4.75 in			IP54, NEMA 12, NEMA 13, UL-508	14 Gauge	Hinged Door, Lid	Box					3.6 kg	8 lbs	Metal, Steel	Gray
