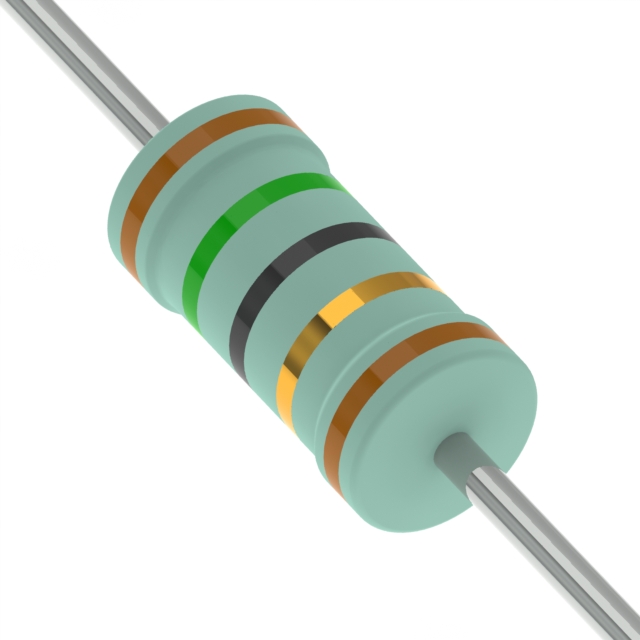

WS2A15R0J

Active

Bourns Inc.

RES 15 OHM 5% 2W AXIAL

Search across all available documentation for this part.

Active

Bourns Inc.

RES 15 OHM 5% 2W AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WS2A15R0J	WS2A Series

Composition	Wirewound	Wirewound
Features	Pulse Withstanding, Flame Retardant Coating, Safety	Pulse Withstanding, Flame Retardant Coating, Safety
Number of Terminations	2	2
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	2 W	2 W
Resistance	15 Ohms	15 - 150 Ohms
Size / Dimension [diameter]	5.5 mm	5.5 mm
Size / Dimension [diameter]	0.217 "	0.217 "
Size / Dimension [x]	0.61 in	0.61 in
Size / Dimension [x]	15.5 mm	15.5 mm
Supplier Device Package	Axial	Axial
Temperature Coefficient	200 ppm/°C	200 ppm/°C
Tolerance	5 %	5 %

RES 15 OHM 5% 2W AXIAL

Part	Package / Case	Tolerance	Supplier Device Package	Features	Number of Terminations	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Resistance	Composition	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Power (Watts)
Bourns Inc. WS2A15R0J	Axial	5 %	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	2	-55 °C	200 °C	200 ppm/°C	15 Ohms	Wirewound	0.61 in	5.5 mm	0.217 "	15.5 mm	2 W
Bourns Inc. WS2A1500J	Axial	5 %	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	2	-55 °C	200 °C	200 ppm/°C	150 Ohms	Wirewound	0.61 in	5.5 mm	0.217 "	15.5 mm	2 W
Bourns Inc. WS2A68R0J	Axial	5 %	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	2	-55 °C	200 °C	200 ppm/°C	68 Ohms	Wirewound	0.61 in	5.5 mm	0.217 "	15.5 mm	2 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Ohms ±5% 2W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
