GMX-SMT2-S101050TR

Active

Kycon, Inc.

FL/SMT M/DJK L/PROF RT<10P10C SH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGMJXHT-MM-S-88 GMX-SMT2 Datasheet +1

GMX-SMT2-S101050TR

Active

Kycon, Inc.

FL/SMT M/DJK L/PROF RT<10P10C SH

Deep-Dive with AI

DocumentsGMJXHT-MM-S-88 GMX-SMT2 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GMX-SMT2-S101050TR

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Surface Mount
Number of Ports	1
Number of Positions/Contacts [custom]	10
Number of Positions/Contacts [custom]	10
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

GMX Series

Part	Shielding	Contact Material	Mounting Type	Termination	LED Color	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Housing Material	Contact Finish	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Number of Rows	Orientation	Number of Positions/Contacts	Features	Contact Finish Thickness	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Kycon, Inc. GMX-SMT2-N-66-50TR	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p6c (RJ11 RJ12 RJ14 RJ25)
Kycon, Inc. GMX-SMT4-N-66-50TR	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p6c (RJ11 RJ12 RJ14 RJ25)	Solder Retention
Kycon, Inc. GMX-N-44-50	Unshielded	Phosphor Bronze	Through Hole	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Polybutylene Terephthalate (PBT)	Gold	Jack	85 °C	-40 °C	Down	1	90 °	4p4c
Kycon, Inc. GMX-SMT4-N-88-TR	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED			1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	8p8c (RJ45 Ethernet)	Solder Retention	Flash
Kycon, Inc. GMX-N-64	Unshielded	Phosphor Bronze	Through Hole	Solder	Does Not Contain LED			1	Polybutylene Terephthalate (PBT)	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p4c		Flash
Kycon, Inc. GMX-SMT2-N-1010	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED			1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °			Flash	10	10
Kycon, Inc. GMX-SMT4-N-64-50	Unshielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p4c	Solder Retention
Kycon, Inc. GMX-SMT2-S-66	Shielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED			1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	6p6c (RJ11 RJ12 RJ14 RJ25)		Flash
Kycon, Inc. GMX-SMT2-S2-1010TR	Shielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED			1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °			Flash	10	10
Kycon, Inc. GMX-SMT2-S6-88-50	Shielded	Phosphor Bronze	Surface Mount	Solder	Does Not Contain LED	50 µin	1.27 µm	1	Thermoplastic	Gold	Jack	85 °C	-40 °C	Down	1	90 °	8p8c (RJ45 Ethernet)	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1950	$ 1.72

Description

General part information

GMX Series

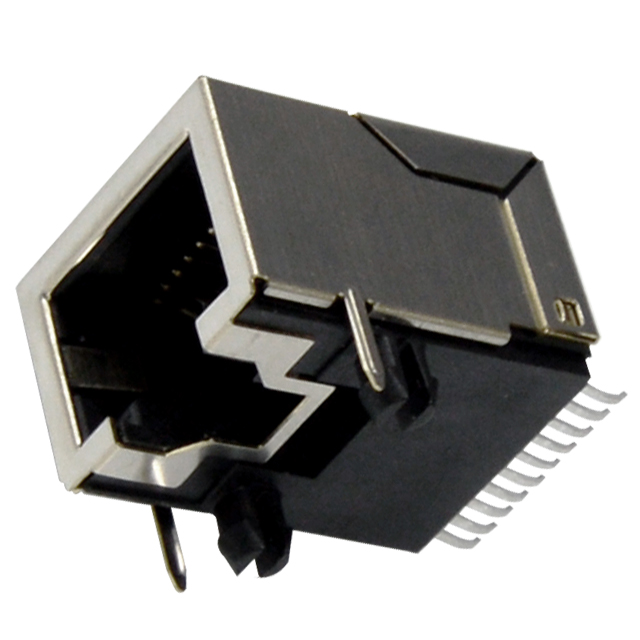

Jack Modular Connector 10p10c (RJ50) 90° Angle (Right) Shielded

Documents

Technical documentation and resources

GMJXHT-MM-S-88

GMX-SMT2 Datasheet

Datasheet
