83334E 009500

Active

Belden Inc.

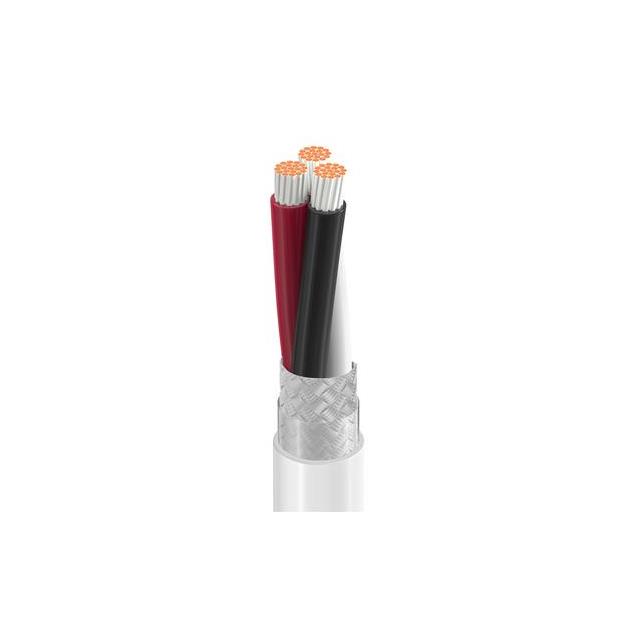

CABLE 3CON 22AWG WHT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3CON 22AWG WHT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83334E 009500

Cable Type	Multi-Conductor
Conductor Insulation	Tetrafluoroethylene (TFE)
Conductor Material	Copper, Silver Coated
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter [diameter]	3.81 mm
Jacket (Insulation) Diameter [diameter]	0.15 in
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.279 mm
Jacket (Insulation) Thickness	0.011 in
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-W-16878/4 Type E
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	22 AWG

Part	Conductor Material	Conductor Strand [custom]	Conductor Strand	Shield Coverage	Conductor Insulation	Wire Gauge	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Qualification	Shield Material	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Voltage	Number of Conductors	Cable Type	Length [x]	Length [x]
Belden Inc. 83334E 0091000	Copper Silver Coated	19 Strands	34 AWG	85 %	Tetrafluoroethylene (TFE)	22 AWG	1000 ft	304.8 m	0.279 mm	0.011 in	3.81 mm	0.15 in	MIL-W-16878/4 Type E	Copper Silver Coated	Tetrafluoroethylene (TFE)	-65 ░C	200 °C	Braid	600 V	3	Multi-Conductor
Belden Inc. 83334E 009500	Copper Silver Coated	19 Strands	34 AWG	85 %	Tetrafluoroethylene (TFE)	22 AWG			0.279 mm	0.011 in	3.81 mm	0.15 in	MIL-W-16878/4 Type E	Copper Silver Coated	Tetrafluoroethylene (TFE)	-65 ░C	200 °C	Braid	600 V	3	Multi-Conductor	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 12.47

General part information

3 Conductor Multi-Conductor Cable White 22 AWG Braid 500.0' (152.4m)
