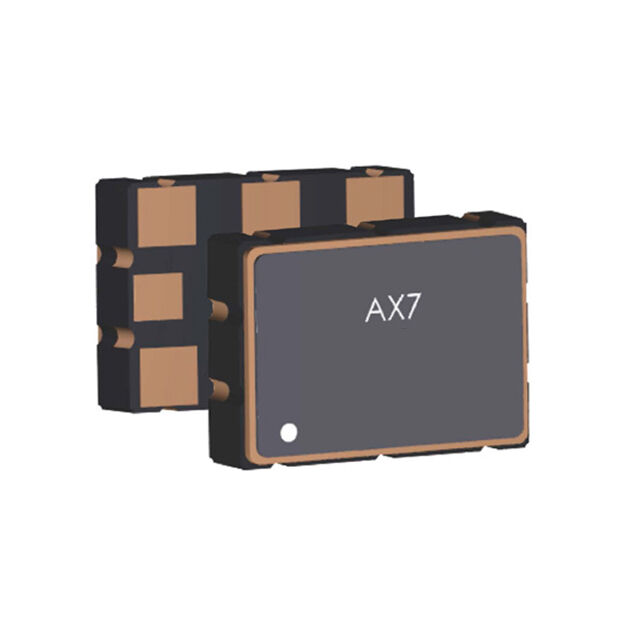

AX7PBF2-420.0000C
UnknownAbracon LLC
XTAL OSC XO 420.0000MHZ LVPECL
AX7PBF2-420.0000C
UnknownAbracon LLC
XTAL OSC XO 420.0000MHZ LVPECL
Description
General part information
AX7PBF2-420.0000C
420 MHz XO (Standard) LVPECL Oscillator 2.5V Enable/Disable 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | AX7PBF2-420.0000C |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 86 mA |
| Current - Supply (Max) | 94 mA |
| Frequency | 420 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.075 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVPECL |
| Package / Case | No Lead, 8-SMD |
| Package Length | 7 mm |
| Package Name | 8-SMD |
| Package Width | 5 mm |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
