24013050

Active

WERMA USA Inc.

COMPLETE UNIT LED

Search across all available documentation for this part.

Active

WERMA USA Inc.

COMPLETE UNIT LED

Technical Specifications

Parameters and characteristics for this part

Specification	24013050

Function - Audible	Pulse
Function - Lighting	Steady, Flashing
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Stacks	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Termination Style	Wire Leads
Type	Optical Element
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

COMPLETE UNIT LED

Part	Ingress Protection	Function - Audible	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Stacks	Function - Lighting	Type	Termination Style
WERMA USA Inc. 24013050	IP65 - Dust Tight, Water Resistant	Pulse	30 VDC	10 VDC	50 °C	-20 C	1	Flashing, Steady	Optical Element	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 129.17

General part information

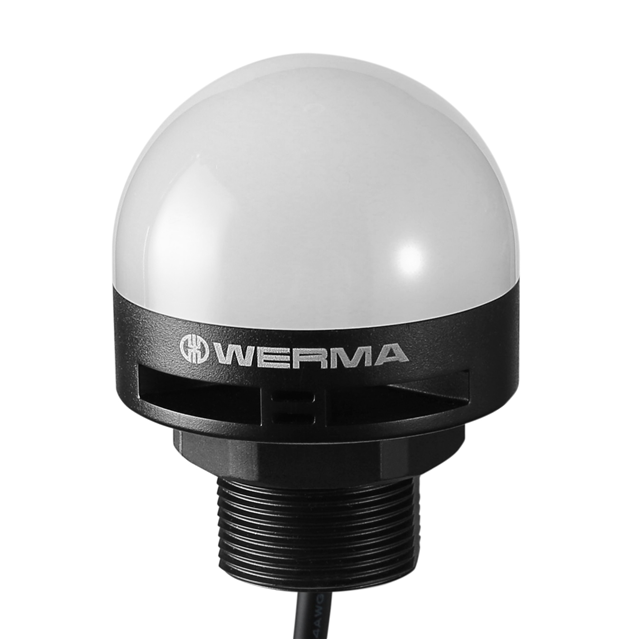

Stack Light Optical Element Blue, Green, Red, Turquoise, Violet, White, Yellow LED Wire Leads

Technical documentation and resources

No documents available
