Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.33 | |
| 5 | $ 4.56 | |||
| 10 | $ 4.29 | |||
| 25 | $ 3.97 | |||
| 50 | $ 3.77 | |||
| 100 | $ 3.58 | |||
| 200 | $ 3.41 | |||
| 250 | $ 3.37 | |||
| 400 | $ 3.26 | |||
| 500 | $ 3.26 | |||
| 600 | $ 3.18 | |||
| 1000 | $ 3.09 | |||
General part information

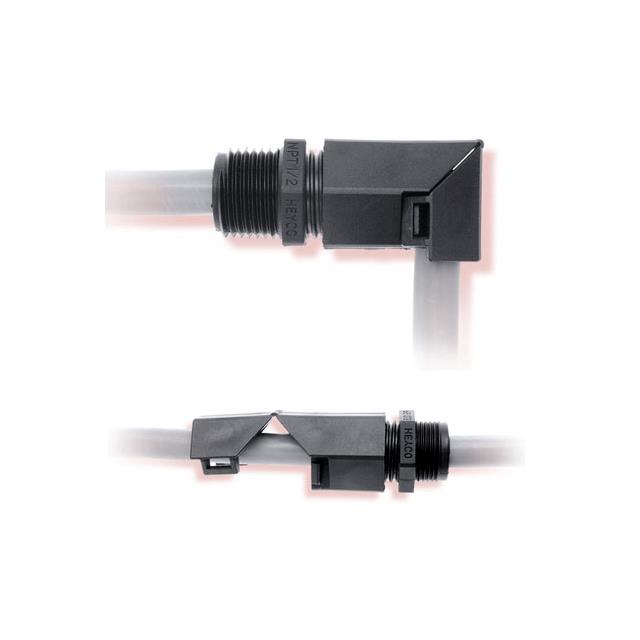

Cable Grip, Multi-Hole Polyamide (PA66), Nylon 6/6 1" NPT Black
Technical documentation and resources
Parameters and characteristics for this part
| Specification | M8437GAL |
|---|---|
| Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature [Max] | 112 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Hole Size | 1.327 in |
| Panel Hole Size | 33.7 mm |
| Thread Size | 1" NPT |
| Type | Cable Grip, Multi-Hole |
CABLE GRIP 1" NPT POLYAMIDE
| Part | Ingress Protection | Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Panel Hole Size | Panel Hole Size | Material | Thread Size |
|---|---|---|---|---|---|---|---|---|---|
Heyco Products Corporation M8437GAL | IP68 - Dust Tight, Waterproof | Cable Grip, Multi-Hole | Black | -40 °C | 112 °C | 1.327 in | 33.7 mm | Polyamide (PA66), Nylon 6/6 | 1" NPT |
