82-5152.2134

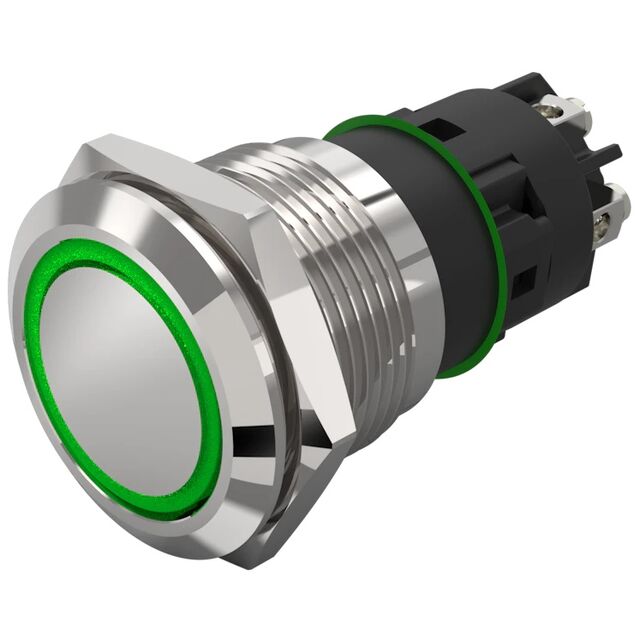

ActiveVANDAL RESISTANT SWITCH, 24 V LED, 82 SERIES, 19 MM, SPDT, MAINTAINED, ROUND FLUSH FLAT, NATURAL
Deep-Dive with AI
Search across all available documentation for this part.
82-5152.2134
ActiveVANDAL RESISTANT SWITCH, 24 V LED, 82 SERIES, 19 MM, SPDT, MAINTAINED, ROUND FLUSH FLAT, NATURAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82-5152.2134 | 82-5152 Series |
|---|---|---|
| Actuator Marking | - | No Marking |
| Actuator Type | - | Flush, Button, Round |
| Circuit | - | SPDT |
| Color - Actuator/Cap | - | Silver |
| Current Rating (Amps) | - | 3 A |
| Electrical Life | - | 50000 Cycles |
| Illumination Type, Color | - | LED, Green, Green/Red, Yellow |
| Illumination Voltage (Nominal) | - | 12 - 24 VAC/DC |
| Ingress Protection | - | IP67, IP65 |
| Mechanical Life | - | 500000 - 1000000 Cycles |
| Mounting Type | - | Panel Mount, Front |
| null | - | |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | -30 ░C |
| Panel Cutout Dimensions | - | 19 mm |
| Switch Function | - | On-On, On-Mom |
| Termination Style | - | Screw Terminal |
| Type | - | Illuminated, Standard |
| Voltage Rating - AC | - | 240 V |
| Voltage Rating - DC | - | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.27 | |
| 10 | $ 27.55 | |||
| 25 | $ 26.27 | |||
| 50 | $ 24.50 | |||
| 100 | $ 23.54 | |||
| 250 | $ 21.94 | |||
| 500 | $ 19.82 | |||
82-5152 Series
VANDAL RESISTANT SWITCH, 24 V LED, 82 SERIES, 19 MM, SPDT, MAINTAINED, ROUND FLUSH FLAT, NATURAL
| Part | Voltage Rating - DC | Ingress Protection | Current Rating (Amps) | Type | Illumination Voltage (Nominal) | Actuator Marking | Mounting Type | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Circuit | Voltage Rating - AC | Switch Function | Illumination Type, Color | Mechanical Life | Actuator Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 82-5152.2134 | 240 V | IP65, IP67 | 3 A | Illuminated, Standard | 24 VAC/DC | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-On | Green, LED | 500000 Cycles | Button, Flush, Round | Screw Terminal |
EAO 82-5152.2000 | 240 V | IP65, IP67 | 3 A | Standard | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-On | 500000 Cycles | Button, Flush, Round | Screw Terminal | ||
EAO 82-5152.2000 | |||||||||||||||||||
EAO 82-5152.2134 | |||||||||||||||||||
EAO 82-5152.22A4 | 240 V | IP65, IP67 | 3 A | Illuminated, Standard | 24 VAC/DC | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-On | Green/Red, LED | 500000 Cycles | Button, Flush, Round | Screw Terminal |
EAO 82-5152.1000 | 240 V | IP65, IP67 | 3 A | Standard | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-Mom | 1000000 Cycles | Button, Flush, Round | Screw Terminal | ||
EAO 82-5152.1000 | |||||||||||||||||||
EAO 82-5152.11A4 | 240 V | IP65, IP67 | 3 A | Illuminated, Standard | 24 VAC/DC | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-Mom | Green/Red, LED | 1000000 Cycles | Button, Flush, Round | Screw Terminal |
EAO 82-5152.2143 | 240 V | IP65, IP67 | 3 A | Illuminated, Standard | 12 VAC/DC | No Marking | Panel Mount, Front | 50000 Cycles | 70 °C | -30 ░C | 19 mm | Silver | SPDT | 240 V | On-On | LED, Yellow | 500000 Cycles | Button, Flush, Round | Screw Terminal |
Description
General part information
82-5152 Series
82-5152.2134 is an 82 series optimal pushbutton for vandal-resistant, stylish HMI controls used in harsh industrial environments, public areas and access control. This series is resistant to vandalism and sealed for use in harsh environments. This innovatively designed switch series is protected according to IK10 impact resistance and IP65/IP67 sealing requirements, which makes it ideally suited for exposed public use and industrial applications. It is ideal for ticketing and vending machines, machinery and factory equipment, food and beverage, elevators and people movers, access control and security systems, audio and video equipment, medical equipment, heavy duty and special vehicles buses and coaches and marine applications. It is approved by CE, CB, UL, C UL, CCC.
