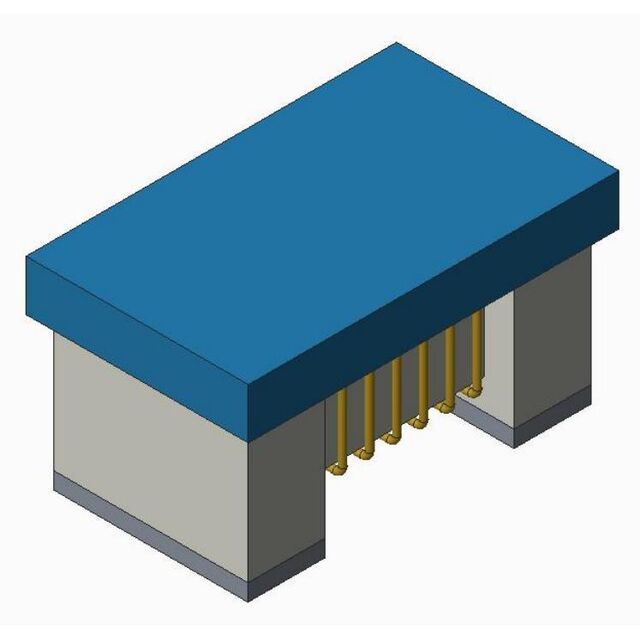

0603HP-221EJTS

Obsolete

Delta Electronics/Components

FIXED IND 220NH 280MA 2 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0603HP-221EJTS

Obsolete

Delta Electronics/Components

FIXED IND 220NH 280MA 2 OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

0603HP Series

220 nH Unshielded Drum Core, Wirewound Inductor 280 mA 2Ohm 0603 (1608 Metric)

Documents

Technical documentation and resources

Datasheet

Specification	0603HP-221EJTS	0603HP Series

Current Rating (Amps)	0.28 A	0.17 - 900 A
DC Resistance (DCR)	2 Ohm	1.5 - 720 mOhm
Frequency - Self Resonant	1.1 GHz	1.05 - 990 GHz
Height - Seated (Max) [Max] [z]	0.6 mm	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in	0.024 in
Inductance	220 nH	3.9 - 360 nH
Inductance Frequency - Test	100 MHz	100 - 250 MHz
Material - Core	Ceramic	Ceramic
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Q @ Freq	47, 250 MHz	13 - 250 MHz
Shielding	Unshielded	Unshielded
Size / Dimension [x]	1.4 mm, 0.055 in	0.055 - 1.4 mm
Size / Dimension [y]	0.045 in, 1.15 mm	0.045 - 1.15 in
Tolerance	5 %	0.2 - 10 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Q @ Freq	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Material - Core	Frequency - Self Resonant	Mounting Type	Package / Case	Shielding	Tolerance	DC Resistance (DCR)	Inductance	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]
Delta Electronics/Components 0603HP-230EKTS	0.6 mm	0.024 in	40, 250 MHz	0.85 A	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	3 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	10 %	180 mOhm	23 nH	250 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
Delta Electronics/Components 0603HP-240EJTS	0.6 mm	0.024 in	42, 250 MHz	1.1 A	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	2.95 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	5 %	85 mOhm	24 nH	250 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
Delta Electronics/Components 0603HP-680EGTS	0.6 mm	0.024 in	46	600 mA	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	2 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	2 %	330 mOhm	68 nH	200 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
Delta Electronics/Components 0603HP-6N8EGTS	0.6 mm	0.024 in	42, 250 MHz	1.4 A	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	5.8 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	2 %	42 mOhm	6.8 nH	250 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
Delta Electronics/Components 0603HP-750EKTS	0.6 mm	0.024 in	46	0.5 A	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	1.9 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	10 %	520 mOhm	75 nH	150 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
Delta Electronics/Components 0603HP-4N3EHTS	0.6 mm	0.024 in	30, 250 MHz	1.3 A	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	7.5 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	3 %	80 mOhm	4.3 nH	250 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
Delta Electronics/Components 0603HP-9N5EGTS	0.6 mm	0.024 in	49, 250 MHz	1.4 A	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	4.9 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	2 %	54 mOhm	9.5 nH	250 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
Delta Electronics/Components 0603HP-7N2EJTS	0.6 mm	0.024 in	48, 250 MHz	1.4 A	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	5.4 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	5 %	52 mOhm	7.2 nH	250 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
Delta Electronics/Components 0603HP-6N8EKTS	0.6 mm	0.024 in	42, 250 MHz	1.4 A	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	5.8 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	10 %	42 mOhm	6.8 nH	250 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
Delta Electronics/Components 0603HP-230EGTS	0.6 mm	0.024 in	40, 250 MHz	0.85 A	-55 °C	125 °C	Drum Core, Wirewound	Ceramic	3 GHz	Surface Mount	0603 (1608 Metric)	Unshielded	2 %	180 mOhm	23 nH	250 MHz	0.045 in, 1.15 mm	0.055 in, 1.4 mm
