UVY1H472MRD

Obsolete

Nichicon

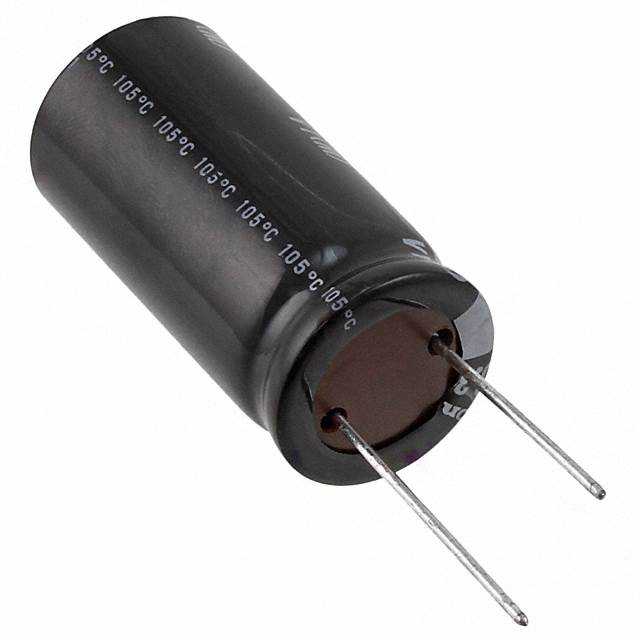

CAP ALUM 4700UF 20% 50V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY1H472MRD

Obsolete

Nichicon

CAP ALUM 4700UF 20% 50V RADIAL

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UVY1H Series

4700 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Miniature Type Taping Spec

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UVY1H472MRD	UVY1H Series

Applications	General Purpose	General Purpose
Capacitance	4700 µF	0.22 - 100000 µF
Height - Seated (Max)	-	11 - 37.5 mm
Height - Seated (Max)	-	0.433 - 1.476 "
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max]	42 mm	12.5 - 42 mm
Height - Seated (Max) [Max]	1.654 in	0.492 - 1.654 in
Lead Spacing	0.394 in	0.079 - 0.394 in
Lead Spacing	10 mm	2 - 10 mm
Lifetime @ Temp.	2000 Hrs	1000 - 2000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	2.415 A	1.0925 - 615 mA
Ripple Current @ Low Frequency	2.1 A	1.3 - 950 mA
Size / Dimension [diameter]	20 mm	5 - 20 mm
Size / Dimension [diameter]	0.787 in	0.197 - 0.787 "
Tolerance	20 %	20 %
Voltage - Rated	50 VDC	50 VDC

UVY1H Series

CAP ALUM 4.7UF 20% 50V RADIAL TH

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Package / Case	Lifetime @ Temp.	Capacitance	Ripple Current @ Low Frequency	Mounting Type	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Ripple Current @ High Frequency	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UVY1H4R7MDD1TA	0.492 in	12.5 mm	20 %	Radial, Can	1000 Hrs	4.7 µF	30 mA	Through Hole	2 mm	0.079 in	105 ░C	-55 °C	50 VDC	60 mA	General Purpose	5 mm	0.197 "	Polar
Nichicon UVY1H2R2MDD	0.492 in	12.5 mm	20 %	Radial, Can	1000 Hrs	2.2 µF	20 mA	Through Hole	2 mm	0.079 in	105 ░C	-55 °C	50 VDC	40 mA	General Purpose	5 mm	0.197 "	Polar
Nichicon UVY1H100MDD	0.492 in	12.5 mm	20 %	Radial, Can	1000 Hrs	10 µF	46 mA	Through Hole	2 mm	0.079 in	105 ░C	-55 °C	50 VDC	92 mA	General Purpose	5 mm	0.197 "	Polar
Nichicon UVY1H470MED	0.492 in	12.5 mm	20 %	Radial, Can	1000 Hrs	47 µF	115 mA	Through Hole	2.5 mm	0.098 in	105 ░C	-55 °C	50 VDC	230 mA	General Purpose	6.3 mm	0.248 in	Polar
Nichicon UVY1H101MPD1TD			20 %	Radial, Can	1000 Hrs	100 µF	190 mA	Through Hole	3.5 mm	0.138 in	105 ░C	-55 °C	50 VDC	285 mA	General Purpose	8 mm	0.315 "	Polar	13 mm	0.512 "
Nichicon UVY1H010MDD1TD	0.492 in	12.5 mm	20 %	Radial, Can	1000 Hrs	1 µF	13 mA	Through Hole	2 mm	0.079 in	105 ░C	-55 °C	50 VDC	26 mA	General Purpose	5 mm	0.197 "	Polar
Nichicon UVY1HR47MDD	0.492 in	12.5 mm	20 %	Radial, Can	1000 Hrs	0.47 µF	7 mA	Through Hole	2 mm	0.079 in	105 ░C	-55 °C	50 VDC	14 mA	General Purpose	5 mm	0.197 "	Polar
Nichicon UVY1H100MDD1TA	0.492 in	12.5 mm	20 %	Radial, Can	1000 Hrs	10 µF	46 mA	Through Hole	2 mm	0.079 in	105 ░C	-55 °C	50 VDC	92 mA	General Purpose	5 mm	0.197 "	Polar
Nichicon UVY1H4R7MDD	0.492 in	12.5 mm	20 %	Radial, Can	1000 Hrs	4.7 µF	30 mA	Through Hole	2 mm	0.079 in	105 ░C	-55 °C	50 VDC	60 mA	General Purpose	5 mm	0.197 "	Polar
Nichicon UVY1H220MDD1TD	0.492 in	12.5 mm	20 %	Radial, Can	1000 Hrs	22 µF	68 mA	Through Hole	2 mm	0.079 in	105 ░C	-55 °C	50 VDC	136 mA	General Purpose	5 mm	0.197 "	Polar
