103169-2

Active

TE Connectivity AMP Connectors

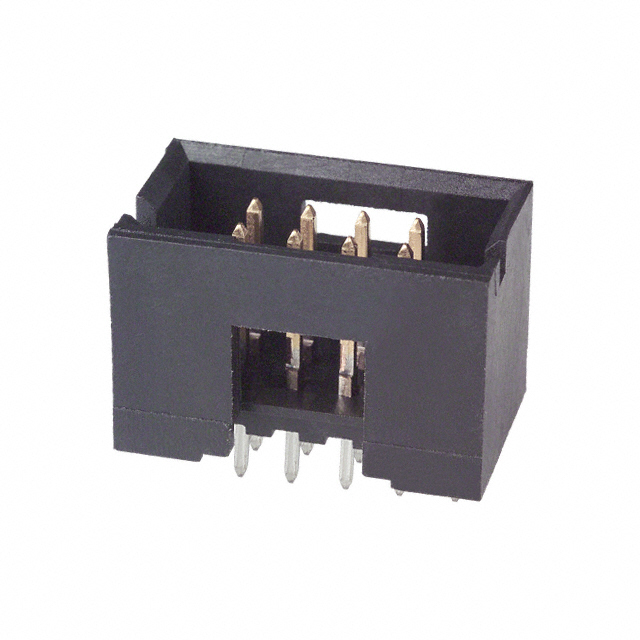

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

103169-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	103169-2	103169 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.44 in	0.44 in
Insulation Height	11.18 mm	11.18 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	8	6 - 60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

103169 Series

CONN HEADER VERT 50POS 2.54MM

Part	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Type	Number of Rows	Connector Type	Contact Finish - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Style	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Shape	Material Flammability Rating	Insulation Material	Contact Material	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Overall Contact Length	Overall Contact Length
TE Connectivity AMP Connectors 2-103169-3	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	50	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 1-103169-1	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	26	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 1-103169-8	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	40	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 1-103169-2	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	28	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 103169-7	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	18	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 2-103169-8	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	60	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 6-103169-8	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	40	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 6-103169-3	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	30	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 103169-1	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	6	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 7-103169-8	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	60	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 1-103169-3	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	30	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 1-103169-0	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	24	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 7-103169-3	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	50	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 103169-3	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	10	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 1-103169-6	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	36	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 5-103169-7	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	18	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 103169-4	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	12	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 103169-2	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	8	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 5-103169-2	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	8	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 6-103169-5	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	34	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 103169-5	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	14	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 5-103169-5	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	14	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in
TE Connectivity AMP Connectors 1-103169-5	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall	Male Pin	2	Header	Gold	Tin-Lead	0.44 in	11.18 mm	Solder	-65 ░C	105 ░C	Board to Board, Cable	3 A	0.1 in	2.54 mm	Square	UL94 V-0	Thermoplastic	Phosphor Bronze	All	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	34	0.318 "	8.08 mm	3.18 mm	0.125 in	Detent Lock	13.55 mm	0.533 in

Description

General part information

103169 Series

Connector Header Through Hole 8 position 0.100" (2.54mm)
