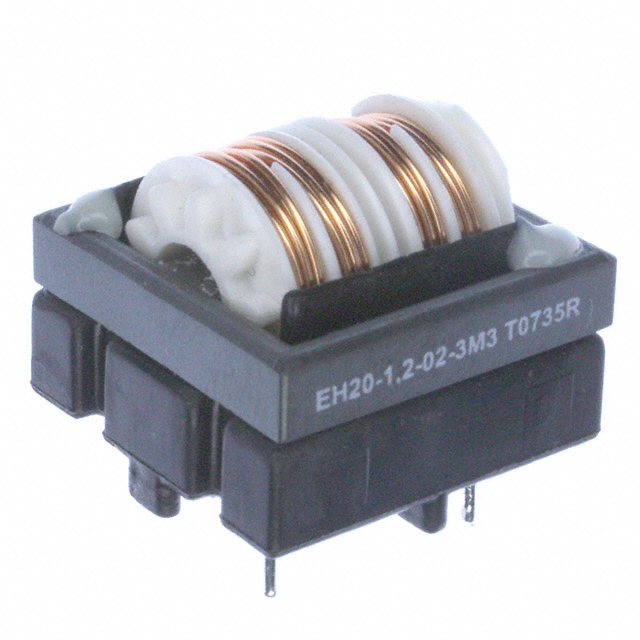

EH20-1.2-02-3M3

Active

Schaffner EMC Inc.

CMC 3.3MH 1.2A 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 3.3MH 1.2A 2LN TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EH20-1.2-02-3M3	EH20-1 Series

Current Rating (Max) [Max]	1.2 A	1.2 - 1.5 A
DC Resistance (DCR) (Max)	127 mOhm	72 - 127 mOhm
Filter Type	Power Line	Power Line
Height (Max)	18.8 mm	18.8 mm
Height (Max) [Max]	0.74 in	0.74 in
Inductance @ Frequency	3.3 mH	1.8 - 3.3 mH
Mounting Type	Through Hole	Through Hole
Number of Lines	2	2
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Package / Case	Horizontal	Horizontal
Package / Case	4 Lead	4 Lead
Size / Dimension [x]	21 mm	21 mm
Size / Dimension [x]	0.827 in	0.827 in
Size / Dimension [y]	0.827 in	0.827 in
Size / Dimension [y]	21 mm	21 mm
Voltage Rating - AC	250 V	250 V

CMC 3.3MH 1.2A 2LN TH

Part	Voltage Rating - AC	Height (Max)	Height (Max) [Max]	Current Rating (Max) [Max]	Mounting Type	Inductance @ Frequency	Package / Case	Package / Case	Operating Temperature [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Filter Type	DC Resistance (DCR) (Max)	Number of Lines
Schaffner EMC Inc. EH20-1.2-02-3M3	250 V	18.8 mm	0.74 in	1.2 A	Through Hole	3.3 mH	Horizontal	4 Lead	-25 °C, 100 °C	0.827 in	21 mm	21 mm	0.827 in	Power Line	127 mOhm	2
Schaffner EMC Inc. EH20-1.5-02-1M8	250 V	18.8 mm	0.74 in	1.5 A	Through Hole	1.8 mH	Horizontal	4 Lead	-25 °C, 100 °C	0.827 in	21 mm	21 mm	0.827 in	Power Line	72 mOhm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.3 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 1.2A DCR 127mOhm (Typ)
