1414000
ActivePhoenix Contact

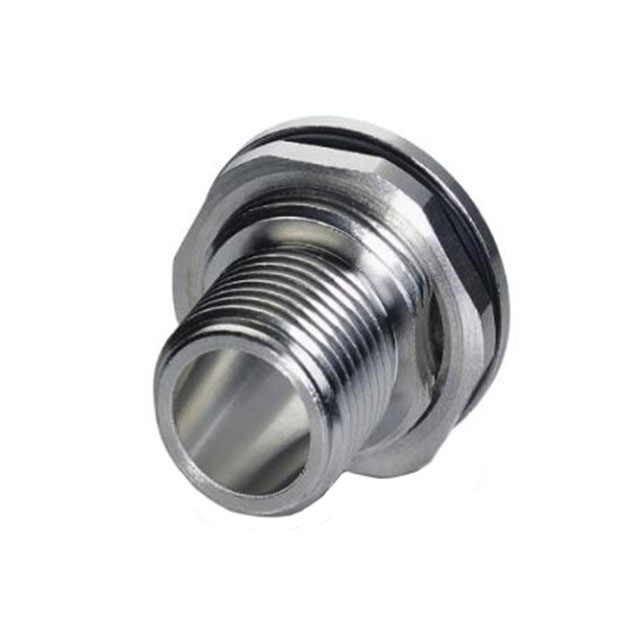

CONN INSERT SHELL PNL MNT
1414000
ActivePhoenix Contact
CONN INSERT SHELL PNL MNT
Description
General part information
1414000
Position Circular Connector Insert Shell Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1414000 |
|---|---|
| Connector Type | Insert Shell |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included, Insert Not Included |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12 |
| Shielding | Unshielded |
