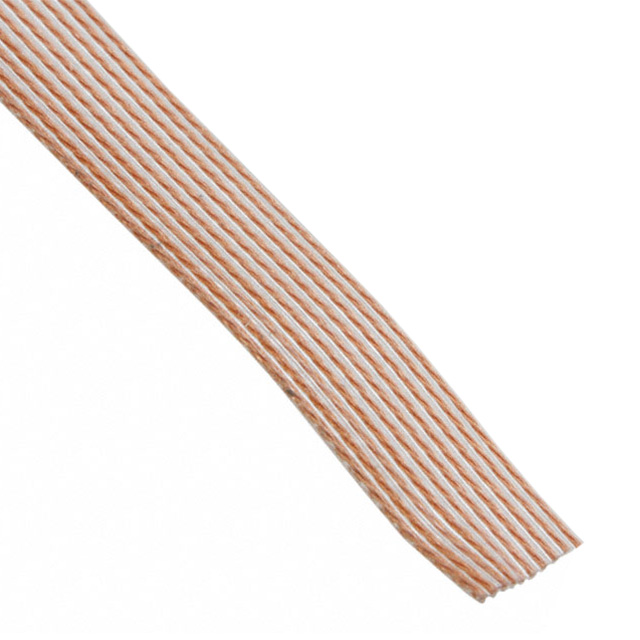

310J101-10

Unknown

Cicoil

CBL RIBN 10COND 0.05 CLEAR 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

310J101-10

Unknown

Cicoil

CBL RIBN 10COND 0.05 CLEAR 25'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	310J101-10	310J101 Series

Cable Termination	-	IDC
Cable Type	Flat Cable	Flat Cable
Color	-	Clear, Ribbon
Conductor Material	Copper, Bare	Copper, Bare
Connector Type	-	Socket to Socket
Current Rating (Amps)	5 A	5 A
Insulation Resistance	200 MOhm	200 MOhm
Jacket (Insulation) Material	Flexx-Sil™	Flexx-Sil™
Jacket Color	Clear	Clear
Length	25 ft, 1 ft, 1000 ft, 6000 in	1 - 6000 ft
Length	7.62 m, 304.8 mm, 304.8 m, 152.4 m	1.83 - 304.8 m
Length [x]	3.05 m, 30.48 m	3.05 - 914.4 mm
Length [x]	10 ft, 100 ft	3 - 100 ft
Number of Conductors	10	10 - 64
Number of Positions	-	16
Number of Positions	-	10 - 26
Number of Rows	-	2
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Cable	-	0.05 "
Pitch - Cable	-	1.27 mm
Pitch - Connector	-	0.1 in
Pitch - Connector	-	2.54 mm
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	CE, UL E324413	CE, UL E324413
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	-	1 - 63.5 in
Ribbon Width	-	25.4 mm
Ribbon Width	-	0.7 in
Ribbon Width	-	17.78 mm
Ribbon Width	-	0.8 - 3.2 in
Ribbon Width	-	20.32 - 81.28 mm
Ribbon Width	-	1.3 - 2.5 "
Ribbon Width [custom]	0.5 "	0.5 "
Ribbon Width [custom]	12.7 mm	12.7 mm
Shielding	Unshielded	Unshielded
Voltage	450 V	450 V
Wire Gauge	28 AWG	28 AWG

310J101 Series

CBL RIBN 20COND 0.05 CLEAR 25'

Part	Pitch [x]	Pitch [x]	Jacket Color	Wire Gauge	Ribbon Width	Ribbon Width	Cable Type	Length	Length	Voltage	Current Rating (Amps)	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Shielding	Number of Conductors	Insulation Resistance	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Pitch - Cable	Pitch - Cable	Cable Termination	Number of Rows	Connector Type	Number of Positions	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Color	Number of Positions	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width
Cicoil 310J101-20	0.05 in	1.27 mm	Clear	28 AWG	1 in	25.4 mm	Flat Cable	1 ft, 25 ft, 6000 in	7.62 m, 152.4 m, 304.8 mm	450 V	5 A	0.89 mm	0.035 in	Flexx-Sil™	Unshielded	20	200 MOhm	Copper, Bare	-65 ░C	260 ░C	CE, UL E324413
Cicoil 310J101-16-CA003															Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket	16	0.1 in	2.54 mm	3 ft	914.4 mm	Clear, Ribbon
Cicoil 310J101-10-CA003															Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm	3 ft	914.4 mm	Clear, Ribbon	10
Cicoil 310J101-14-CA006								6 ft	1.83 m						Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm			Clear, Ribbon	14
Cicoil 310J101-14	0.05 in	1.27 mm	Clear	28 AWG			Flat Cable	1 ft, 25 ft, 50 ft, 1000 ft	7.62 m, 15.24 m, 304.8 mm, 304.8 m	450 V	5 A	0.89 mm	0.035 in	Flexx-Sil™	Unshielded	14	200 MOhm	Copper, Bare	-65 ░C	260 ░C	CE, UL E324413									10 ft	3.05 m			0.7 in	17.78 mm
Cicoil 310J101-10-CA006								6 ft	1.83 m						Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm			Clear, Ribbon	10
Cicoil 310J101-20-CA003															Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm	3 ft	914.4 mm	Clear, Ribbon	20
Cicoil 310J101-34	0.05 in	1.27 mm	Clear	28 AWG			Flat Cable	1 ft, 50 ft, 6000 in	15.24 m, 152.4 m, 304.8 mm	450 V	5 A	0.89 mm	0.035 in	Flexx-Sil™	Unshielded	34	200 MOhm	Copper, Bare	-65 ░C	260 ░C	CE, UL E324413									100 ft	30.48 m					1.7 in	43.18 mm
Cicoil 310J101-26	0.05 in	1.27 mm	Clear	28 AWG	33.02 mm		Flat Cable	1 ft, 25 ft, 50 ft, 6000 in	7.62 m, 15.24 m, 152.4 m, 304.8 mm	450 V	5 A	0.89 mm	0.035 in	Flexx-Sil™	Unshielded	26	200 MOhm	Copper, Bare	-65 ░C	260 ░C	CE, UL E324413									10 ft, 100 ft	3.05 m, 30.48 m							1.3 "
Cicoil 310J101-26-CA003															Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm	3 ft	914.4 mm	Clear, Ribbon	26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.45
		3000	$ 3.05

Description

General part information

310J101 Series

Flat Ribbon Cable Clear 10 Conductors 0.050" (1.27mm) Flat Cable 25.0' (7.62m)
