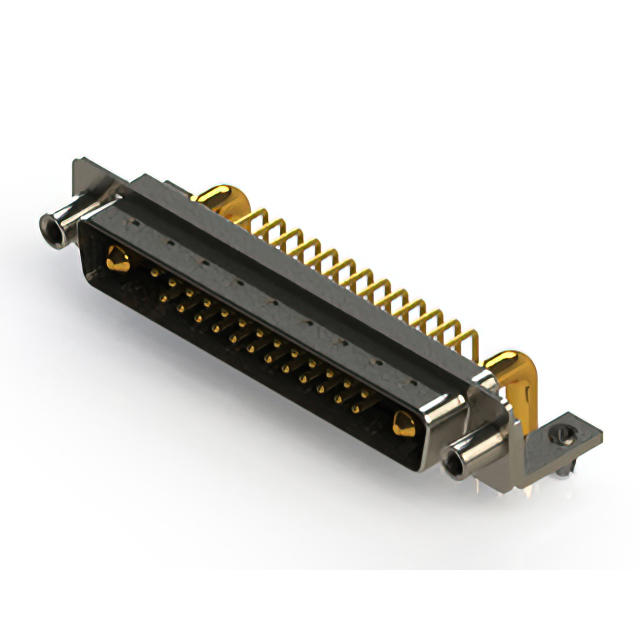

629-27W2640-4TD

Active

EDAC Inc.

CONN D-SUB PLUG 27POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-27W2640-4TD

Active

EDAC Inc.

CONN D-SUB PLUG 27POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-27W2640-4TD

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	27W2
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	125 VDC

629-27W Series

...

Part	Material Flammability Rating	Color	Features	Contact Material	Voltage Rating	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Shell Size, Connector Layout	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Current Rating (Amps)	Dielectric Material	Contact Finish	Connector Type	Termination	Number of Rows	Shell Material, Finish	Contact Finish Thickness	Number of Positions
EDAC Inc. 629-27W2640-4TD	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets	Copper Alloy	125 VDC	Combo D-Sub	0.76 Ám	30 Áin	M3	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Signal and Power	Through Hole Right Angle	5 A 40 A	Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2
EDAC Inc. 629-27W2650-4TB	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets	Copper Alloy	125 VDC	Combo D-Sub	0.76 Ám	30 Áin	Housing/Shell (M3)	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Signal and Power	Through Hole Right Angle	5 A 40 A	Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2
EDAC Inc. 629-27W2640-2N3	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets	Copper Alloy	125 VDC	Combo D-Sub	0.76 Ám	30 Áin	Housing/Shell (4-40)	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Signal and Power	Through Hole Right Angle	5 A 20 A	Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2	Nickel Plated Steel
EDAC Inc. 629-27W2240-2TD	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets	Copper Alloy	125 VDC	Combo D-Sub			M3	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Signal and Power	Through Hole Right Angle	5 A 20 A	Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2		Flash
EDAC Inc. 629-27W2240-5T2	UL94 V-0	Black		Copper Alloy	125 VDC	Combo D-Sub			Housing/Shell (4-40)	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Coax Signal	Through Hole Right Angle		Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2		Flash	27
EDAC Inc. 629-27W2640-2ND	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets	Copper Alloy	125 VDC	Combo D-Sub	0.76 Ám	30 Áin	M3	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Signal and Power	Through Hole Right Angle	5 A 20 A	Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2	Nickel Plated Steel
EDAC Inc. 629-27W2250-4T1	UL94 V-0	Black	Grounding Indents Shielded	Copper Alloy	125 VDC	Combo D-Sub			Housing/Shell (Unthreaded)	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Signal and Power	Through Hole Right Angle	5 A 40 A	Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2		Flash
EDAC Inc. 629-27W2240-2NE	UL94 V-0	Black	Grounding Indents Mounting Brackets	Copper Alloy	125 VDC	Combo D-Sub			M3	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Signal and Power	Through Hole Right Angle	5 A 20 A	Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2	Nickel Plated Steel	Flash
EDAC Inc. 629-27W2240-4NE	UL94 V-0	Black	Grounding Indents Mounting Brackets	Copper Alloy	125 VDC	Combo D-Sub			M3	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Signal and Power	Through Hole Right Angle	5 A 40 A	Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2	Nickel Plated Steel	Flash
EDAC Inc. 629-27W2240-5T5	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets	Copper Alloy	125 VDC	Combo D-Sub			4-40	27W2	4	9.4 mm	0.37 in	-55 °C	125 °C	Coax Signal	Through Hole Right Angle		Polyester Thermoplastic	Gold	Male Pins Plug	Solder	2		Flash	27

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 21.93

Description

General part information

629-27W Series

27 (25 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
