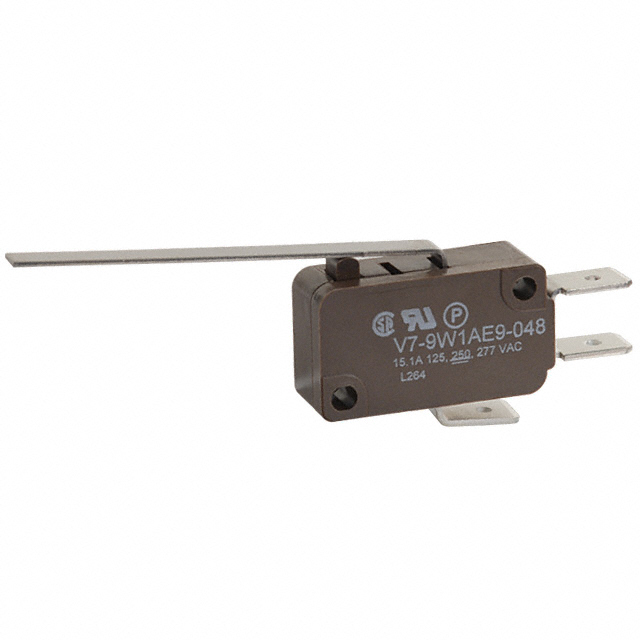

V7-9W1AE9-048

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACTION SPDT 15A 125V

Part	Overtravel	Overtravel	Operating Force	Mechanical Life	Switch Function	Termination Style	Mounting Type	Pretravel	Pretravel	Operating Position	Operating Position	Circuit	Actuator Type	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Differential Travel	Differential Travel	Release Force	Current Rating (Amps)
Honeywell Sensing and Productivity Solutions V7-9W1AE9-048	0.125 in	3.2 mm	90 gf	10000000 Cycles	On-Mom	Quick Connect - 0.250" (6.3mm)	Chassis Mount	6.35 mm	0.25 in	15.3 mm	0.602 "	SPDT	Lever, Straight	100000 Cycles	-40 °C	177 °C	125 V	1.4 mm	0.055 in	4 gf	15 A
Honeywell Sensing and Productivity Solutions V7-9W1AE9-022	0.07 in	1.8 mm	162 gf	10000000 Cycles	On-Mom	Quick Connect - 0.250" (6.3mm)	Chassis Mount	3 mm	0.12 in	15.3 mm	0.602 "	SPDT	Lever, Straight	100000 Cycles	-40 °C	177 °C	125 V	0.7 mm	0.028 in	8 gf	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
