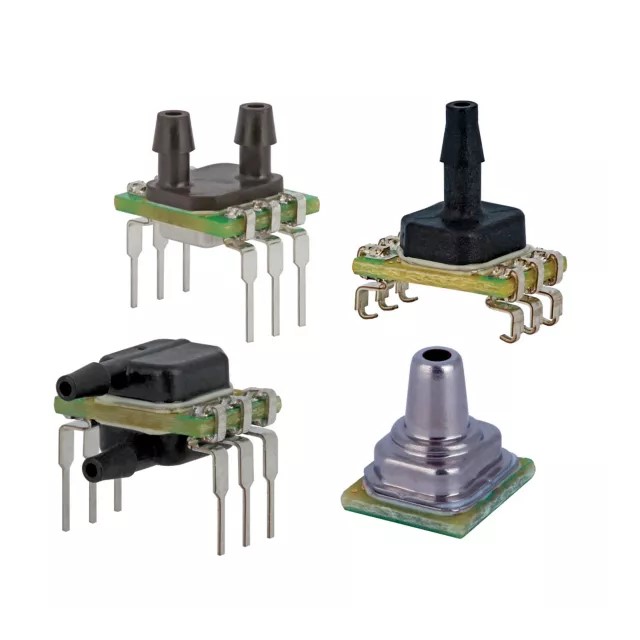

ABP2MRRT015PDSA3XX
ActiveHoneywell Sensing and Productivity Solutions
"ABP2, SMT, PLASTIC DUAL RADIAL BARBED PO "
ABP2MRRT015PDSA3XX
ActiveHoneywell Sensing and Productivity Solutions
"ABP2, SMT, PLASTIC DUAL RADIAL BARBED PO "
Description
General part information
ABP2MRRT015PDSA3XX
Pressure Sensor ±15PSI (±103.42kPa) Differential Male - 0.06" (1.6mm) Tube, Dual 14 b 6-SMD, J-Lead, Dual Ports, Same Side
Technical Specifications
Parameters and characteristics for this part
| Specification | ABP2MRRT015PDSA3XX |
|---|---|
| Accuracy | 0.25 % |
| Applications | Medical Ventilation |
| Features | Temperature Compensated, Amplified Output |
| Maximum Pressure | 240 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure | 15 PSI |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Output Bits | 14 b |
| Output Type | SPI |
| Package / Case | Same Side, J-Lead, 6-SMD, Dual Ports |
| Package Name | 6-SMD |
| Port Diameter | 0.06 in |
| Port Feature | Tube, Dual |
| Port Gender | Male |
| Port Style | Barbed |
| Pressure Type | Differential |
| Termination Style | J Lead |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.8 V |
